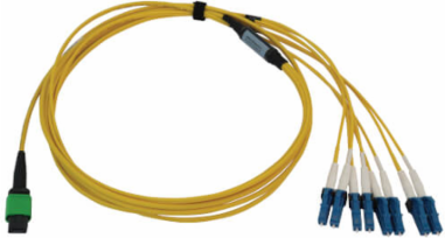

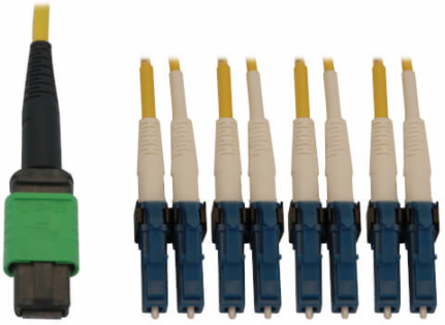

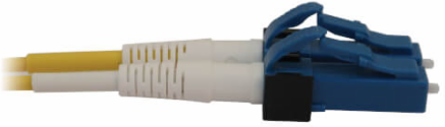

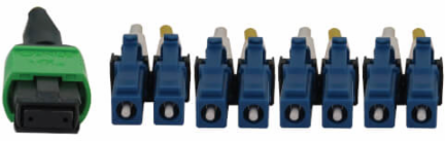

Tripp Lite N390X02M8LAP Fiber Optic Cable, MTP/MPO APC to 4x Duplex LC UPC, Singlemode 9/125 OS2, 400G, LSZH, Yellow, 2 m
- MPN: N390X02M8LAP
- UPC: 037332272386
- PPN: TRP-N390X-02M-8L-AP
CAD
$268.46
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
400G Singlemode 9/125 OS2 Switchable Fiber Optic Cable (12F MTP/MPO-APC to 4x Duplex LC/UPC F/M), LSZH, Yellow, 2 m (6.6 ft.)
Documentation & Downloads
Specifications
Performance
| Network Compatibility | 10 Gbps; 40 Gbps; 100 Gbps; 400 Gbps |
|---|---|
| Attenuation @ 1310NM | 0.40 dB/km |
| Operating Temperature Range | 14° to 140°F (-10° to 60°C) |
| Relative Humidity | 5% to 85% RH, Non-Condensing |
| Wavelength | 1310nm; 1550nm |
|---|---|
| Attenuation @ 1550NM | 0.30 dB/km |
| Storage Temperature Range | 14° to 140°F (-10° to 60°C) |
Dimensions
| Technology | Fiber; Singlemode |
|---|---|
| Side B - Connector 1 | (4) LC DUPLEX (MALE) |
| Switchable Polarity | Yes |
| Number of Fibers | 2 |
| Core Diameter | 9.0 |
| Minimum Bend Radius | 20 mm (Dynamic); 10 mm (Static) |
| Side A - Connector 1 | 12F MPO (FEMALE) |
|---|---|
| Optical Port | MPO/MTP |
| Cable Length | 2M (6.6 ft) |
| Clad Diameter | 125.0 |
| Primary Coating Diameter | 245.0 |
Reference
| Product Warranty Period | Lifetime limited warranty |
|---|
Material
| Endface Polish | APC; UPC |
|---|---|
| Connector Color | Blue; Green; Black |
| Cable Jacket Rating | OFNR |
| Cable Jacket Color | Yellow |
|---|---|
| Cable Jacket Material | LSZH |
