3M 7000138433 3M™ Wraparound Heat Shrink Cable Repair Sleeve HDCW-110/30-1000, Length 39.4 in (1000 mm), 5/case
- MPN: 7000138433
- UPC: 04001895590924
- PPN: MMM-HDCW110/30-1000
CAD
$430.55
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

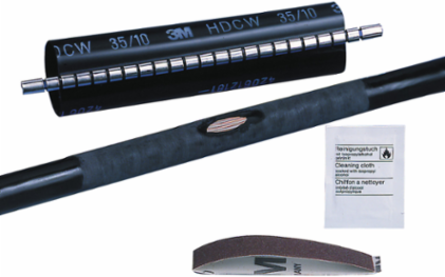

3M™ Heat Shrink Cable Repair Sleeve HDCW is designed to repair quickly damaged cable jacketing. This wraparound sleeve can be used as insulation material on cable and splices up to 1000V and as jacket repair material on cable up to 35 kV. The cross linked polyolefin construction has an adhesive that offers moisture seal protection.
Features
- Excellent protection against mechanical stress
- Offers excellent corrosion protection on undamaged cables
- Rated for 35 kV applications
- Made of adhesive-lined, cross-linked polyolefin
- Thick-walled sheet is tough and reliable
- ANSI Certified and RoHS 2011/65/EU Compliant
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Germany |
|---|---|
| Inner Diameter After Shrink (Metric) UOM | mm |
| Inner Diameter After Shrink (Imperial) UOM | in |
| Inner Diameter Before Shrink (Imperial) UOM | in |
| Inner Diameter Before Shrink (Metric) UOM | mm |
| Cable Type | Any type of cable |
| Dielectric Strength (V/mil) | 25 kV/mm |
| Flame Retardant | No |
| Heat Shrink Type | Heat Shrink Molded Shapes |
| Material | Adhesive-lined, Cross-Linked Polyolefin |
| Minimum Expanded Tubing I. D. | 4.72 |
| Minimum Shrink Temperature (Celsius) | 125.0 |
| Overall Length (Imperial) UOM | in |
| Overall Length (Metric) UOM | mm |
| Product Form | Sleeve-roll |
| Product Type | Splice |
| Shelf Life | 3600 |
| Sleeve Length UOM | in |
| Splice Type | Heat Shrink |
| Units per Case | 5.0 |
| Inner Diameter After Shrink (Metric) | 25.0 |
|---|---|
| Inner Diameter After Shrink (Imperial) | 0.9 |
| Inner Diameter Before Shrink (Imperial) | 5.2 |
| Inner Diameter Before Shrink (Metric) | 132.0 |
| Adhesive Lined | Yes |
| Chemical Resistant | Yes |
| Elongation UOM | % |
| Halogen Free | Yes |
| Jacket Repair Range | 1.18 to 4.33 Inch |
| Maximum Voltage Rating | 1 kV to 35 kV |
| Minimum Expanded Tubing I. D. UOM | in |
| Overall Length (Imperial) | 39.4 |
| Overall Length (Metric) | 1000.0 |
| Product Color | Black |
| Product Technology | Heat Shrink |
| RoHS EU Comments | RoHS 2011/65/EU compliant without exemption |
| Sleeve Length | 39.4 |
| Splice Configuration | Heat Shrink Cable Repair Wrap Sleeve (HDCW) |
| UV Resistant | Yes |
| Voltage | 1 kV |
