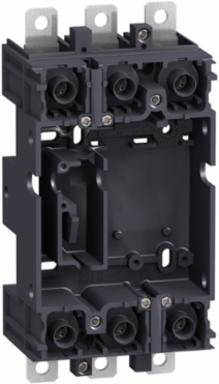

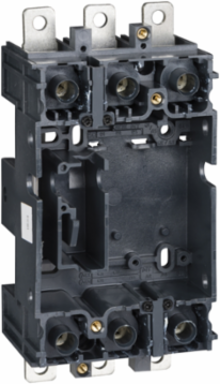

Schneider Electric LV429266 plug in base, ComPact NSX100/160/250, front/rear connected, 3 poles
- MPN: LV429266
- PPN: SCH-LV429266
CAD
$776.83
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This is a plug-in base for 3 poles Compact NSX 100/160/250 circuit breakers. The plug-in base is part of a complete plug-in kit. A plug-in configuration is made by adding a plug-in kit to a fixed Compact NSX device. A plug-in configuration allows to install or extract rapidly and easily the circuit breaker from its base. This operation can be done without connecting or disconnecting the power circuit.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France
Complementary Attributes
- Line Rated Current
- 250 A
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SC, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Poles Description
- 3P
- Carbon Footprint Of The Distribution Phase [A4]
- 0.17196992251820853, 0.2 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.10790609590617577, 0.1 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 102 kg CO2 eq., 101.7887903851451
- Local Publishable Date
- 2025-07-10
- Stocking Flag
- N
- Traceability
- No
- Weee Applicability
- Finished product
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 7
- Without Single Use Plastic
- No
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Mounting Mode
- plug-in
- Product Availability
- Stock - Normally stocked in distribution facility
- Range
- ComPact
- Software Version
- v6.2.1
- Total Lifecycle Carbon Footprint
- 108 kg CO2 eq.
- Pep Code
- ENVPEP2405019EN
- Pep Verification Date
- 2024-06-15
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Energy Model - Installation [A5]
- Electricity Mix; Low voltage; 2018; Europe, EU-27
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Low voltage; 2018; Europe, EU-27
- Accessory / Separate Part Category
- mounting accessory
- Halogen-free Status
- Product contains halogen above thresholds
- Package Weight(Lbs)
- 873.400 g
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator
Market SegmentationCommercial, Industrial
Range Of ProductComPact NSX100...250, ComPact NSX100...250 DC
Carbon Footprint Of The End-of-life Phase [C1 To C4]2 kg CO2 eq., 1.7356522195156037
Carbon Footprint Of The Manufacturing Phase [A1 To A3]4 kg CO2 eq., 3.7326271562496194
Local Data StatusPublishable
Return IndicatorY
ServiceabilityNo
Field Service DivisionPPIBS
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2405019EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date0818
China Rohs In ScopeNo
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Energy Efficiency OptimizedFalse
Number Of Poles3P
Product Or Component Typeplug-in base
ReturnabilityYes
Sustainable PackagingNo
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2023-02
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent external review
Functional-unit DescriptionOther switchgear and controlgear solutions mentioned in the scope (e.g. fuses TC32, all-or-nothing relays TC94, Measuring relays and protection equipment TC95), apply the general rules of PCR and mention in the accompanying report the functional unit, the reference product characteristics, the reference lifetime and the use scenario which are applied consistently with the relevant IEC technical standards.Protect the installation from overloads and short circuits in a circuit with rated voltage Ue, rated current In, with Np poles, a rated breaking capacity Icu up to 100kA RMS, and, if applicable, the specific specifications, in the Industrial application area, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
Functional-unit Unitunit
Energy Model - Manufacturing [A1-a3]France, FR
Energy Model - Use [B6]Electricity Mix; Low voltage; 2018; Europe, EU-27
Recyclability Potential In %67
Earth-leakage Protectionwithout
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8538908120
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Halogene Performance
- Product contains halogen above thresholds
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI2405019EN
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2024-06-15
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Take BackNo
Recycled Metal Content At Cr Level0 %
Carbon Footprint107.53694577933472
Environmental DisclosureENVPEP2405019EN
Halogen Content PerformanceProduct contains halogen above thresholds
Packaging Without Single Use PlasticNo
Pep CodeENVPEP2405019EN
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Range Of Product
- ComPact NSX100...250, ComPact NSX100...250 DC
Product Or Component Typeplug-in base
ETIM
- ETIM 8
- EC002043
ETIM 9EC002043
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
