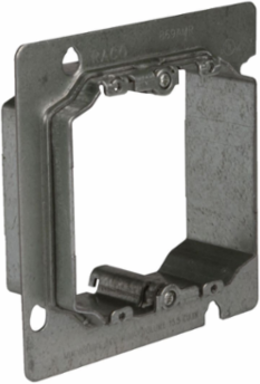

Raco 869AMR Adjustable Mud Ring 4-11/16 Inch for Two Devices, UL Listed, Steel, 1-3/8 Inch Adjustability
- MPN: 869AMR
- UPC: 050169808696
- PPN: HBL-869AMR
- UNSPSC: 39121304
CAD
$13.65
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
4-11/16 in. Adjustable Mud Ring, Two Device
Features
- 1/2 in. to 1-3/8 in. adjustability range
- Depth adjusted by 2 screws located on opposite sides
- Cubic Capacity: 8 cu in min/15.5 cu in max
- Adjustment screws are inside of ring eliminating damaged from router
- Design allows 2-gang cover to be installed without removing box screws
- For use with 2-1/8 in. deep boxes
- UL Listed
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
- Description - Slang
- Adjustable Mud Ring
- Product Type
- Cover
- Color
- Gray
- Standard
- UL Listed
- Weight
- 0.558 lb.
- Class Code
- D01
- Freight Class Code
- 06202000
- Image Actual Or Representative
- A
- Drawn or Welded
- Drawn
- Material
- Steel
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 14.582 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 25
- Pallet - GTIN - Package
- 70050169808695
- Pallet Length
- 48.000 in
- Pallet Width
- 42.000 in
Actual Depth1.41 in
Height4.75 in
Size4-11/16 in
ShapeSquare
TypeMud Ring
Width4.75 in
Description - Invoice4-11/16 ADJ MUD RING - TWO DEVICE
Harmonization Code7326908688
Sub Class CodeD01D011
Paintable/StainableNo
Number of Gang(s)2-Gang
BOX SIZE6.125x15.000x9.500 (in)
Carton - Number of Sub Packs25
Carton - SCC-14 Next Lower Level Sub Pack00050169808696
Case Weight14.750 lb.
Pallet Height48.375 in
Pallet Weight1269.888 lb.
NAICS Code3359326102
Certifications
- Certified Listed
- UL Listed
