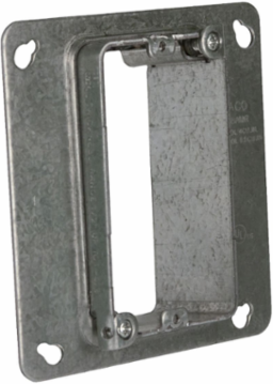

4 Inch Square Adjustable Mud Ring, 1-Gang, Steel, UL Listed
Raco

Raco 768AMR 4 Inch Square Adjustable Mud Ring, 1-Gang, Steel, UL Listed

  • MPN: 768AMR
  • UPC: 050169807682
  • PPN: HBL-768AMR
  • UNSPSC: 39121304

CAD

$11.45

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

4 in. Square Adjustable Mud Ring, Single Device

Features

  • Adjustable from 1/2 in. to 1-3/8 in.
  • Depth adjusted by 2 screws located on opposite sides
  • Cubic Capacity: 4 cu in min/9.5 cu in max

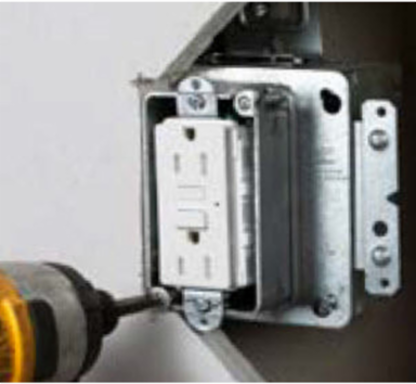

  • Adjustment screws are clearly visible and accessible even after device is installed
  • All screws are inside of ring eliminating damaged from router
  • For use with 2-1/8 in. deep boxes
  • UL Listed

Documentation & Downloads

Specifications

Key Specifications

Country of Origin
China
ChannelSightWidgetId
705
Height
4.2 in
Size
4 in
Standard
UL Listed
Weight
0.476 lb.
Class Code
D01
Freight Class Code
06202000
Image Actual Or Representative
A
Drawn or Welded
Drawn
Material
Steel
Base Unit of Measure
EA
Carton - Gross Weight per Pack
12.466 lb.
Carton - Pack Description
Carton
Carton - Total Units
25
Pallet Height
48.816 in
Pallet Weight
1353.930 lb.
NAICS Code
3359326102
Actual Depth1.41 in
Description - SlangAdjustable Mud Ring
Product TypeCover
ShapeSquare
TypeMud Ring
Width4.2 in
Description - Invoice4SQ ADJ MUD RING - SINGLE DEVICE
Harmonization Code7326908688
Sub Class CodeD01D010
Paintable/StainableNo
Number of Gang(s)1-Gang
BOX SIZE6.200x12.300x8.800 (in)
Carton - Number of Sub Packs25
Carton - SCC-14 Next Lower Level Sub Pack00050169807682
Pallet - GTIN - Package70050169807681
Pallet Length48.000 in
Pallet Width42.000 in

Certifications

Certified Listed
UL Listed
