Raco 868AMR Adjustable Mud Ring 4-11/16 Inch Single Device, UL Listed, Steel
- MPN: 868AMR
- UPC: 050169808689
- PPN: HBL-868AMR
- UNSPSC: 39121304
CAD
$11.54
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

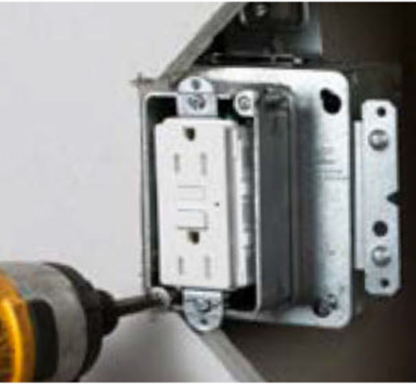

4-11/16 in. Adjustable Mud Ring, Single Device
Features
- 1/2 in. to 1-3/8 in. adjustability range
- Depth adjusted by 2 screws located on opposite sides
- Cubic Capacity: 4 cu in min/9.5 cu in max
- Adjustment screws are clearly visible and accessible even after device is installed
- All screws are inside of ring eliminating damaged from router
- For use with 2-1/8 in. deep boxes
- UL Listed
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
- ChannelSightWidgetId
- 705
- Height
- 4.75 in
- Size
- 4-11/16 in
- Shape
- Square
- Type
- Mud Ring
- Width
- 4.75 in
- Description - Invoice
- 4-11/16 ADJ MUD RING - SINGLE DEVICE
- Harmonization Code
- 7326908688
- Sub Class Code
- D01D011
- Paintable/Stainable
- No
- Number of Gang(s)
- 1-Gang
- BOX SIZE
- 6.200x13.750x9.500 (in)
- Carton - Number of Sub Packs
- 25
- Carton - SCC-14 Next Lower Level Sub Pack
- 00050169808689
- Pallet - GTIN - Package
- 70050169808688
- Pallet Length
- 48.000 in
- Pallet Width
- 42.000 in
Actual Depth1.41 in
Description - SlangAdjustable Mud Ring
Product TypeCover
ColorGray
StandardUL Listed
Weight0.566 lb.
Class CodeD01
Freight Class Code06202000
Image Actual Or RepresentativeA
Drawn or WeldedDrawn
MaterialSteel
Base Unit of MeasureEA
Carton - Gross Weight per Pack14.620 lb.
Carton - Pack DescriptionCarton
Carton - Total Units25
Pallet Height48.375 in
Pallet Weight1580.100 lb.
NAICS Code3359326102
Certifications
- Certified Listed
- UL Listed
