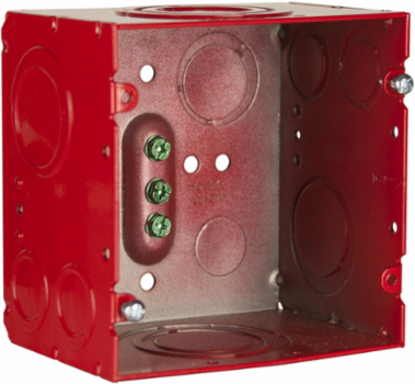

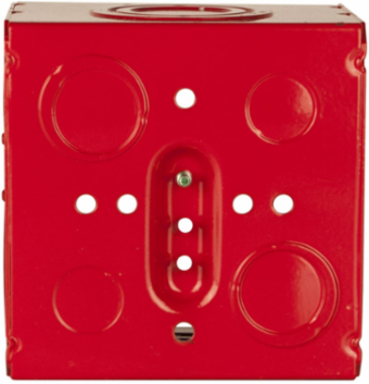

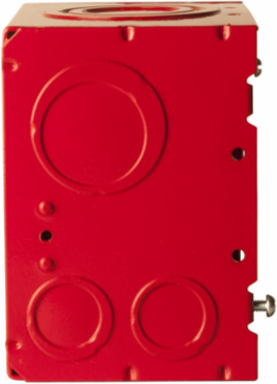

Raco 911-15 Life Safety Square Box 4-11/16 Inch, Welded, 3-1/4 Inch Deep, Red
- MPN: 911-15
- UPC: 050169091258
- PPN: HBL-911-15
- UNSPSC: 39121309
CAD
$30.60
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
4-11/16 in. Life Safety Square Box, Welded, 3-1/4 in. Deep, (4) 1/2 in.- 3/4 in. TKO; (2) 1 in. - 1-1/4 in. TKO; (2) 1 in. - 2 in. Concentric KO; and (2) 3/4 in. - 1 in. TKO; (2) 1/2 in. KO, Red
Features
- Red boxes, covers and extensions for dedicated life safety alarm circuits.
- 911-15 accepts all 4-11/16 in. square covers and mudrings.
- Accepts standard 4-11/16 in. square device and flat covers
- 4-11/16 in. square x 3-1/4 in. deep
- Ground screws provided
- Welded construction
- Painted red
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|---|
| ChannelSightWidgetId | 705 |
| Product Type | Steel Box |
| Color | Red |
| Height | 4.688 in |
| Standard | cULus Listed |
| Width | 4.625 in |
| Bracket Type | No Bracket |
| ARRA Compliant | Contact Manufacturer |
| Description - Invoice | LARGE CAP. OUTLET BOX PAINTED RED (260) |
| Harmonization Code | 7326908688 |
| MSDS Flag | Yes |
| Returnable Indicator | Yes |
| Sub Class Code | D023D0231 |
| Raised Ground | Yes |
| Material | Steel |
| Proposition 65 Warning Required | No |
| BOX SIZE | 7.31x13.19x9.88 (in) |
| Carton - Gross Weight per Pack | 15.7 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 10 EA |
| Lowest Level UOM | Each |
| Pallet - Number of Sub Packs | 64 |
| Pallet - Total Units | 480 EA |
| Pallet Length | 43.375 in |
| Pallet Width | 43.375 in |
| Actual Depth | 3.563 in |
|---|---|
| Depth | 3.25 in |
| Size | 4-11/16 in |
| Cubic Capacity | 66.7 cu.in |
| Knockouts | 1/2 in;1/2 - 3/4 in Combination (TKO);3/4 - 1 in Combination (TKO);1 - 1-1/4 in Combination (TKO);1 - 2 in Concentric |
| Type | Box |
| Weight | 1.57 lb. |
| Shape | Square |
| Class Code | D01 |
| Freight Class Code | 06202000 |
| Image Actual Or Representative | A |
| Order Multiple | 10 EA |
| Stock Indicator | S - Shelf Stock |
| Drawn or Welded | Welded |
| Wiring System | Conduit |
| Number of Gang(s) | 2-Gang |
| Base Unit of Measure | EA |
| Box Type | Wall Box |
| Carton - Number of Sub Packs | 10 |
| Carton - SCC-14 Next Lower Level Sub Pack | 50169091258 |
| Each - Pack Description | Each |
| Pallet - GTIN - Package | 70050169091257 |
| Pallet - Pack Description | Pallet |
| Pallet Height | 35.125 in |
| Pallet Weight | 798.600 lb. |
| NAICS Code | 3359326101 |
Certifications
| Buy American Compliant | Contact Manufacturer |
|---|
| Certified Listed | cULus Listed |
|---|
