Hubbell 3004MSBU Steel Stud Device Box 3 Inch Deep 18 Cu. In. 1-Gang with MSB Bracket
Hubbell 3004MSBU Steel Stud Device Box 3 Inch Deep 18 Cu. In. 1-Gang with MSB Bracket
- MPN: 3004MSBU
- UPC: 626463000731
- PPN: HBL-3004MSBU
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$5.75/ EA
Description

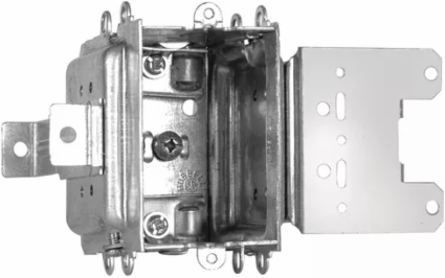

Steel Stud Device Box 3 Inch Deep 18 Cu. In. 1-Gang with MSB Bracket
Features
- Featuring a specialized MSB bracket with a precise 0.4375" setback, this device box is engineered for flawless alignment with standard 1/2" drywall in commercial steel-frame construction. The integrated bracket eliminates the need for extra mounting hardware, providing a rigid, no-sag installation that prevents switches and outlets from wobbling or receding over time.
- Built with a versatile gangable design, this 3-inch deep box allows you to easily remove the sides to combine multiple units into a single, multi-gang configuration. This professional flexibility saves time on the job site by allowing you to adapt to changing circuit requirements on the fly without carrying a dozen different box sizes in your truck.
- With a generous 18.0 cu. in. interior volume, this box easily accommodates bulky smart switches, GFCI receptacles, and the mandated wire-bending space for NMD90 and AC90 (14/2 to 8/3) cables. The extra depth ensures you won't have to struggle with "crowded box" syndrome, reducing the risk of pinched wires or heat buildup behind the wall.
- Equipped with four easy-access cable pryouts and universal internal clamps, this box allows for rapid wire entry from the ends without requiring additional tools or separate connectors. This streamlined cable management system speeds up "rough-in" installations while ensuring a secure, code-compliant grip that protects your electrical connections from strain.
Specifications
- Wiring System
- Non-Metallic Sheathed (NMD), Armoured Cable (AC) 14/2 8/3
- Volume
- 18 cu. in.
- Bracket Type
- MSB, for Steel Stud
- Cable Entries
- 4
- Configuration
- Welded
- Certified Listed
- CSA
Depth3 in
Number of Gangs1-Gang
Weight0.7 lb
MaterialSteel
Plaster EarsNo
ColorGray
Downloads
