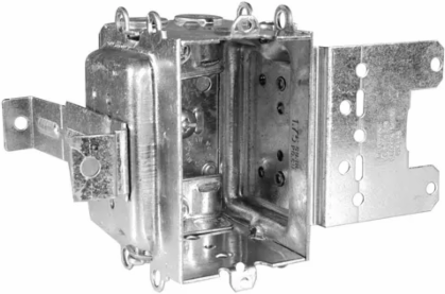

Hubbell H3104MSBUBAR Steel Stud Device Box 2-1/2 Inch Deep, 16 Cu. In., 1-Gang, CSA Certified (25-Pack)
- MPN: H3104MSBUBAR
- UPC: 805035055830
- PPN: HBL-H3104MSBUBAR
CAD
$11.16
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Steel Stud Device Box 2-1/2 Inch Deep, 16 Cu. In., 1-Gang, CSA Certified (25-Pack)
Features
- Built with a versatile gangable design, this 2-1/2" deep box allows you to easily remove the side plates to combine multiple units into a larger multi-gang configuration. This flexibility is a major asset for industrial electricians who need to adapt on the fly to changing site requirements without carrying dozens of different box SKUs.
- With a generous 16.0 cu. in. interior volume, this box comfortably accommodates modern, bulky components like GFCI outlets, dimmers, and smart home switches alongside your wire connectors. The extra depth simplifies the "push-back" process, preventing pinched conductors and reducing the risk of short circuits in high-density commercial wiring runs.
- This box features a heavy-duty MSB bracket designed specifically for 2-3/8" and 3-5/8" steel stud sizes, providing a rigid, non-flexing attachment point for commercial framing. The precision-engineered 0.4375" setback ensures your devices sit perfectly flush with standard single-layer drywall, eliminating the need for tedious manual adjustments during the finishing phase.
- Equipped with four universal cable pryouts and factory-installed clamps, this box is fully compatible with both AC90 (BX) and NMD90 (Romex) wiring systems. The inclusion of a raised ground screw further accelerates installation, providing a reliable bonding point that ensures your high-rise or residential project remains strictly compliant with CSA safety standards.
Documentation & Downloads
Specifications
Additional
- Capacity
- 16 Cu. In.
- Number of Gangs
- 1-Gang
- Bracket Type
- MSB, for Steel Stud
- Weight
- 0.72 lb
- Cable Entry
- Universal Cable Clamps
- Wiring System
- Non-Metallic Sheathed (NMD)/Armoured Cable (AC) 14/2 8/3
- Raised Ground
- Yes
- Compliance
- CSA Certified
Depth2.5 in
MaterialSteel
Bracket Setback0.4375 in
ColorGray
Cable Ends4
Drawn or WeldedWelded
TypeSwitch Box
