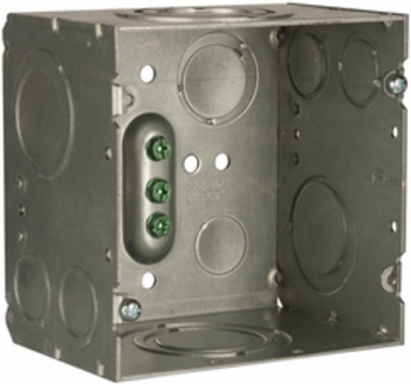

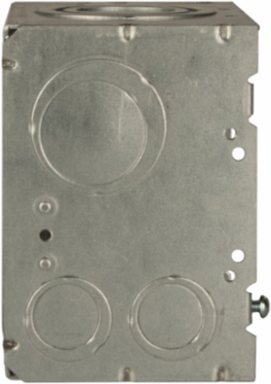

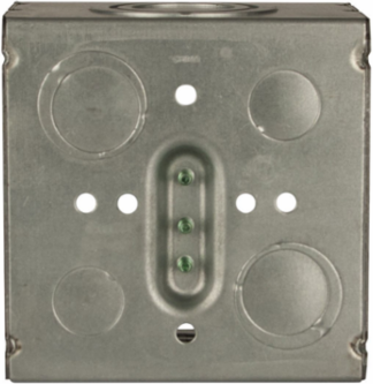

Raco 260 4-11/16 in. Square Box, Large Capacity, Welded, 3-1/4 in. Deep, (2) 1/2 in. KO, (4) 1/2 - 3/4 in. TKO, (2) 3/4 - 1 in. TKO, (2) 1 - 1-1/4 in. TKO, (2) 1, 1-1/4, 1-1/2, 2 in. KO

4-11/16 in. Square Box, Large Capacity, Welded, 3-1/4 in. Deep, (2) 1/2 in. KO, (4) 1/2 - 3/4 in. TKO, (2) 3/4 - 1 in. TKO, (2) 1 - 1-1/4 in. TKO, (2) 1, 1-1/4, 1-1/2, 2 in. KO
4-11/16 in. Square Box, Large Capacity, Welded, 3-1/4 in. Deep, (2) 1/2 in. KO, (4) 1/2 - 3/4 in. TKO, (2) 3/4 - 1 in. TKO, (2) 1 - 1-1/4 in. TKO, (2) 1, 1-1/4, 1-1/2, 2 in. KO
4-11/16 in. Square Box, Large Capacity, Welded, 3-1/4 in. Deep, (2) 1/2 in. KO, (4) 1/2 - 3/4 in. TKO, (2) 3/4 - 1 in. TKO, (2) 1 - 1-1/4 in. TKO, (2) 1, 1-1/4, 1-1/2, 2 in. KO
  • MPN: 260
  • UPC: 050169002605
  • PPN: HBL-260
  • UNSPSC: 39121309

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$17.82/ EA

Description

4-11/16 in. Square Box, Large Capacity, Welded, 3-1/4 in. Deep, (2) 1/2 in. KO, (4) 1/2 - 3/4 in. TKO, (2) 3/4 - 1 in. TKO, (2) 1 - 1-1/4 in. TKO, (2) 1, 1-1/4, 1-1/2, 2 in. KO

Features

  • Large capacity design measures 4-11/16 in. H x 4-11/16 in. W x 3-1/4 in. D
  • Accepts standard 4-11/16 in. square device and flat covers
  • Ground screws provided
  • 4-11/16 in. square x 3-1/4 in. deep
  • Welded construction

Specifications

Specifications

ChannelSightWidgetId
705
ARRA Compliant
Contact Manufacturer
Country of Origin
Mexico
Color
Gray
Height
4.69 in
Size
4-11/16 in
Width
4.69 in
Knockouts
1/2 in;1/2 - 3/4 in Combination (TKO);3/4 - 1 in Combination (TKO);1-1-1/4 Combination (TKO);1, 1-1/4, 1-1/2, 2 in Combination (TKO)
Type
Box;Large Capacity
Description - Invoice
4-11/16" SQ DATA BOX 3-1/4" DEEP
Harmonization Code
7326909999
MSDS Flag
Yes
Returnable Indicator
Yes
Drawn or Welded
Welded
Wiring System
Conduit
Number of Gang(s)
2-Gang
Base Unit of Measure
EA
Box Type
Wall Box
Carton - Number of Sub Packs
10
Carton - SCC-14 Next Lower Level Sub Pack
50169002605
Case Weight
14.800 lb.
Lowest Level UOM
Each
Pallet - Number of Sub Packs
72
Pallet - SCC-14 Next Lower Level Sub Pack
50050169002600
Pallet Height
35.125 in
Pallet Weight
798.600 lb.
StandardcULus Listed
Stock IndicatorS - Shelf Stock
Actual Depth3.55 in
Depth3.25 in
Product TypeSteel Box
Weight1.57 lb.
Cubic Capacity66.7 cu.in
ShapeSquare
Class CodeD01
Freight Class Code06105700
Image Actual Or RepresentativeA
Order Multiple10 EA
Sub Class CodeD023D0231
Raised GroundYes
MaterialSteel
Proposition 65 Warning RequiredNo
BOX SIZE9.875x13.250x7.250 (in)
Carton - Gross Weight per Pack15.7 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Each - Pack DescriptionEach
Pallet - GTIN - Package70050169002604
Pallet - Pack DescriptionPallet
Pallet - Total Units480 EA
Pallet Length43.375 in
Pallet Width43.375 in

Certifications

Buy American Compliant
No
EU RoHS Indicator
Yes
Certified ListedcULus Listed
