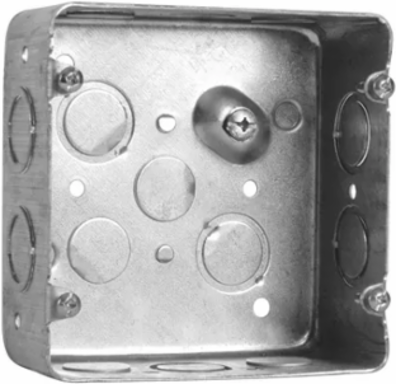

Hubbell H72171KBAR 4-11/16 In. Square Box, 2-1/8 in. Deep, 42 Cu. In., with Raised Ground Screw, with Concentric, 1/2 & 3/4 in. KO (30-Pack)
- MPN: H72171KBAR
- UPC: 805035056080
- PPN: HBL-H72171KBAR
CAD
$15.21
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
4-11/16 In. Square Box, 2-1/8 in. Deep, 42 Cu. In., with Raised Ground Screw, with Concentric, 1/2 & 3/4 in. KO (30-Pack)
Features
- The Hubbell-Raco H72171KBAR is a heavy-duty, 4-inch square, 2-1/8 inch deep steel junction box pre-assembled with a dedicated T-Bar mounting bracket. It is engineered specifically for suspended (drop) ceilings, allowing you to mount an electrical box securely between two ceiling T-grid runners.
- The integrated bracket is a heavy-duty adjustable span (typically 24 inches) that clips directly onto the T-bar grid. It features a unique locking mechanism that allows the box to be positioned anywhere along the span. This is the professional standard for installing fire alarm strobes, emergency lighting, or sensors in commercial office spaces.
- This is a "Deep" box. This extra room is crucial for housing bulky components like GFCI receptacles, lighting ballasts, or large bundles of Cat6 data cables that require a specific bend radius to maintain performance.
- Dual-sized openings, they allow for either 1/2-inch or 3/4-inch conduit connections. This versatility means you don't need to swap boxes if the job site specs change from standard power conduit to larger data sleeves.
- The H72171KBAR is UL Listed and designed to meet the rigorous requirements of commercial construction. The bracket provides a rigid, vibration-resistant mount that helps satisfy NEC and CEC codes regarding the support of electrical equipment in "plenum" or suspended ceiling spaces, ensuring the box won't shift or sag over time.
Documentation & Downloads
Specifications
Additional
- Volume
- 42 Cu. In.
- Depth
- 2-1/8 in.
- Weight
- 0.81 lb
- Configuration
- Concentric
- Bracket Type
- No Bracket
- Knockouts
- 1/2 & 3/4 in Combination
- Color
- Gray
Size4-11/16 in.
Number of Gangs2-Gang
MaterialSteel
Wiring SystemConduit
Raised Ground ScrewYes
Drawn or WeldedDrawn
CertificationCSA
