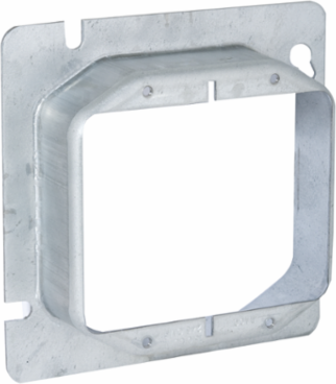

Raco 820 4-11/16 Inch Square Cover, 2-Device, 1-1/4 Inch Raised, Steel, 20.5 cu. in. Capacity
- MPN: 820
- UPC: 050169008201
- PPN: HBL-820
- UNSPSC: 39121304
CAD
$7.38
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
4-11/16 in. Square Cover, 2-Device, 1-1/4 in. Raised
Features
- Partition divides 4 in. square boxes into two compartments
- Use partitions with two-device covers which have a slot for the partition
- Helpful hint: Assemble the box with the partition in place before breaking off at the scored tab. This will prevent you from breaking off more tab than needed
- To mount any combination of switch, duplex receptacle, GFCI
- Made from zinc, pre-coated, steel
- 20.5 cu. in. capacity
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | China |
|---|---|
| Height | 4.688 in |
| Product Type | Cover |
| Cubic Capacity | 15.0 cu.in |
| Size | 1.25 in x 4.688 in x 4.688 in |
| Type | Mud Ring |
| Width | 4.688 in |
| Class Code | D01 |
| Freight Class Code | 06202000 |
| Image Actual Or Representative | A |
| Order Multiple | 25 EA |
| Stock Indicator | S - Shelf Stock |
| Drawn or Welded | Drawn |
| Material | Steel |
| Raised Height | 1.25 in |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 11.1 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 25 EA |
| Lowest Level UOM | Each |
| Pallet - Number of Sub Packs | 91 |
| Pallet - SCC-14 Next Lower Level Sub Pack | 50050169008206 |
| Pallet Height | 47.250 in |
| Pallet Weight | 1055.100 lb. |
| NAICS Code | 3359326102 |
| Dimensions | 1.25 in x 4.688 in x 4.688 in |
|---|---|
| Length | 1.25 in |
| Color | Gray |
| Shape | Square |
| Standard | cULus Listed |
| Weight | 0.444 lb. |
| ARRA Compliant | Contact Manufacturer |
| Description - Invoice | 4-11/16SQ MUDRG 2)DEV 1-1/4RSD |
| Harmonization Code | 7326908688 |
| MSDS Flag | Yes |
| Returnable Indicator | Yes |
| Sub Class Code | D011D0112 |
| Paintable/Stainable | No |
| Number of Gang(s) | 2-Gang |
| Proposition 65 Warning Required | No |
| BOX SIZE | 10.75x13x6.125 (in) |
| Carton - Number of Sub Packs | 25 |
| Carton - SCC-14 Next Lower Level Sub Pack | 50169008201 |
| Each - Pack Description | Each |
| Pallet - GTIN - Package | 70050169008200 |
| Pallet - Pack Description | Pallet |
| Pallet - Total Units | 2275 EA |
| Pallet Length | 42.000 in |
| Pallet Width | 48.000 in |
Certifications
| Buy American Compliant | Contact Manufacturer |
|---|
| Certified Listed | cULus Listed |
|---|
