Tripp Lite PDU1230 4.8/5.8kW Single-Phase 200/208/240V Basic PDU, 20 Outlets (16 C13 & 4 C19), NEMA L6-30P Input, 15 ft. Cord, 1U Rack-Mount
Tripp Lite PDU1230 4.8/5.8kW Single-Phase 200/208/240V Basic PDU, 20 Outlets (16 C13 & 4 C19), NEMA L6-30P Input, 15 ft. Cord, 1U Rack-Mount
- MPN: PDU1230
- UPC: 037332122261
- PPN: TRP-PDU1230
Spec sheet
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$630.36/ EA
Description
Delivers 200/208/240V single-phase AC power to multiple loads from a utility outlet, generator or UPS system in a high-density IT environment. Ideal for networking, telecom, security, audio/video and sound reinforcement applications.
Features

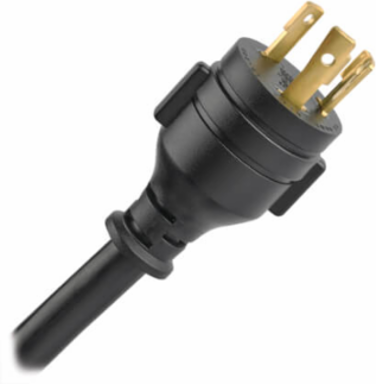

- NEMA L6-30P input with 15 ft. (4.5 m) cord
- 20 total outlets—12 rear C13, 4 front C13 & 4 front C19
- Switchless design prevents accidental shutdown

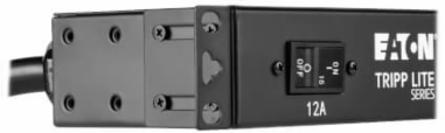

- Reversible all-metal housing
- Installs in rack, on wall or under counter
- 5-year limited warranty
Specifications
Certifications
- Certifications
- Tested to UL60950-1 (USA), CSA-C22.2 (Canada)
Physical
- Form Factors Supported
- 1U rackmount, 0U vertical rackmount, wall-mount and undercounter installation supported
- Minimum Required Rack Depth (inches)
- 8.7
- Shipping Dimensions (hwd / in.)
- 11.00 x 2.90 x 20.20
- Unit Dimensions (hwd / in.)
- 1.75 x 17.5 x 5.2
Material of ConstructionMetal
PDU Form FactorHorizontal (1U)
Shipping Weight (lbs.)8.20
Unit Weight (lbs.)7.5
User Interface, Alerts & Controls
- Switches
- No power switch
Input
- PDU Input Voltage
- 200; 208; 240
- Maximum Input Amps
- 30
- PDU Plug Type
- NEMA L6-30P
- Input Cord Length (ft.)
- 15
Recommended Electrical Service30A 208/240V
Maximum Input Amps Details30A maximum (agency de-rated to 24A continuous)
Input PhaseSingle-Phase
Output
- Frequency Compatibility
- 50 / 60 Hz
- Output Receptacles
- (16) C13; (4) C19
- Overload Protection

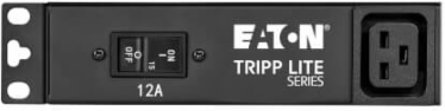

- 4 10A breakers protect 4 C13 outlets each; 4 15A breakers protect 1 C19 outlet each
Output Capacity Details5.8kW (240V), 5kW (208V), 4.8kW (200V) total capacity / 30A max (Agency de-rated to 24A); 15A max per breakered C19 outlet bank; 12A max per breakered C13 outlet bank
Output Nominal Voltage200; 208; 240
Environmental
- Storage Temperature Range
- -30°C to +50°C (-22°F to +122°F)
- Operating Elevation (ft.)
- 0-10,000
Relative Humidity5 to 95% non-condensing
Operating Elevation (m)0-3000
Overview
- UPC Code
- 037332122261
PDU TypeBasic
Special Features
- TVSS Grounding
- Back panel grounding lug
Warranty
- Product Warranty Period (Worldwide)
- 5-year limited warranty
