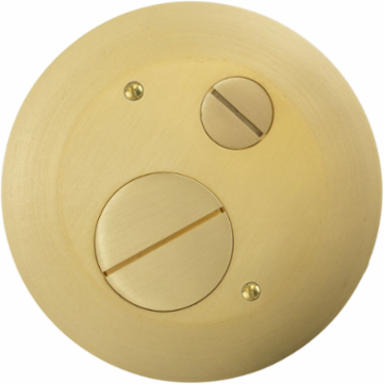

Hubbell Wiring Device-Kellems S1R4FFCVRBRS 4 Inch Round Furniture Feed Cover with Brushed Brass Finish
- MPN: S1R4FFCVRBRS
- UPC: 783585546292
- PPN: HBL-S1R4FFCVRBRS
- UNSPSC: 39121307
CAD
$467.05
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Concrete Floorboxes, Recessed, 4" CFBS1R4 Series, Furniture Feed Round Cover Assembly, Brushed Brass Plated Finish
Features
- Aluminum One Piece Cover Flange
- (1) 3/4" Threaded Hub for Power and (1) 1½" Threaded Hub for Data
- Die Cast Aluminum Cover Construction for Enhanced Durability
- Complies with ADA
- Low Profile Surface Cover with (1) 1½" Threaded Hub and (1) 3/4" Threaded Hub
Specifications
Key Specifications
- Country of Origin
- United States
- Core Hole
- 4 Inch
- Industry Standard(s)
- cULus;UL514
- Size
- Standard Sized Product
- Cable Entry
- Threaded Hubs
- Mounting
- (2) Screw Mount
- Special Features
- Low Profile Surface Cover with (1) 1½" Threaded Hub and (1) 3/4" Threaded Hub
- Sub Brand
- Recessed Concrete Floor Boxes
- Width
- 5.5 in
- General Literature Asset 1 Display Text
- Hubbell SystemOne 4 Inch Solutions
- Number Of Outlets
- (1) 3/4" & (1) 1½" Threaded Hub Multi-Service
- Class Code
- A36
- Harmonization Code
- 7616995190
- MSDS Flag
- No
- Material - Mounting Hardware
- Mounting Hardware Included
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 8.850 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 12 EA
Application - For Use OnCarpet/Tile
Cover ShapeRound
Mounting MethodMounts to Adusting Cup
ApplicationFor Use with Concrete Floor Boxes
ColorBrushed Brass Plated
Number of Outlet(1) 3/4" & (1) 1½" Threaded Hub Multi-Service
StandardcULus;UL514
Type4" Round Recessed Floor Box Furniture Feed Cover
Engineering Drawing 1 Display TextS1R4FFCVRBRS AutoCAD Drawing
Mounting Type(2) Screw Mount
StyleCover Flanges
Freight Class Code06111001
Image Actual Or RepresentativeA
Sub Class CodeA36A352
MaterialCast Aluminum
BOX SIZE7.100x13.800x13.900 (in)
Carton - Number of Sub Packs12
Carton - SCC-14 Next Lower Level Sub Pack00783585546292
NAICS Code3359326106
Certifications
- EU RoHS Indicator
- Contact Manufacturer
