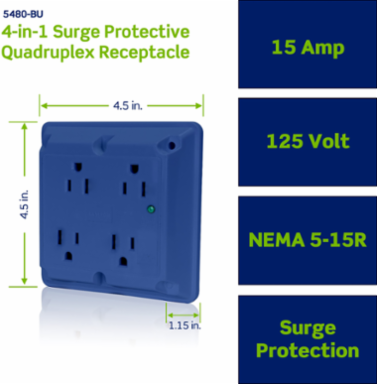

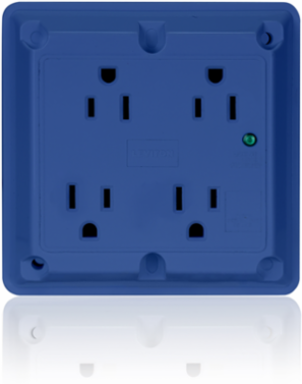

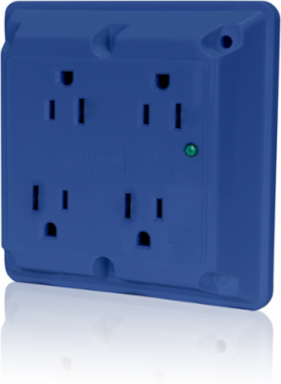

Leviton 5480-BU 15 Amp 4-in-1 Surge Protective Quadruplex Receptacle, Blue, 125 Volt, NEMA 5-15R
- MPN: 5480-BU
- UPC: 078477843536
- PPN: LEV-5480-BU
CAD
$151.36
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
4-in-1 Surge Protective Quadruplex Receptacle Outlet, Heavy-Duty Industrial Specification Grade, 15 Amp, 125 Volt, Side Wire, NEMA 5-15R, 2-Pole, 3-Wire - Blue

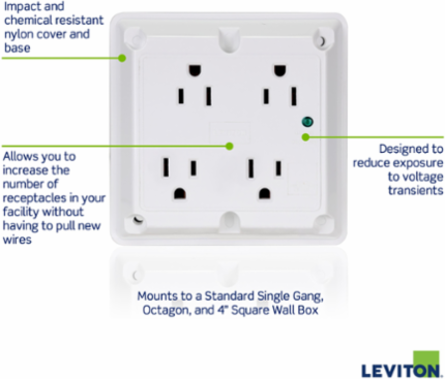

Features
- Code Compliant - Allows you to increase the number of receptacles in your facility without having to pull new wires
- Durable - Impact and chemical resistant nylon cover and base
- Easy Installation - Termination anchor holes for easy conductor wiring
- Reliable - 5-Year Limited Warranty
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|
| RoHS Compliant | False |
|---|
Standards and Certifications
| ANSI | C-73 |
|---|---|
| NEMA | WD-1 WD-6 |
| UL Fed Spec WC-596 | File E13399 |
| CSA C22.2 No. 42 | File 152105 |
|---|---|
| NOM | 057 |
| UL498 | File E13399 |
Performance Data
| Diagnostics | Indicator Light |
|---|---|
| MCOV | 150V rms |
| Noise Rejection | -30dB at 500kHz-300MHz |
| Short Circuit Current Rating | 5kA |
| VPR | L-N:500V, L-G:600V, N-G:500V |
| Joules Rating | 720 |
|---|---|
| Max Surge Current L-N | 24kA |
| Nominal Discharge Current Rating | 3kA |
| UL1449 Impulse 6kV/500A L-N | 330V |
Material Specifications
| Body Material | Nylon |
|---|---|
| Grounding Screw | Steel 8-32 w/ 12AWG Green 8 Inch Pigtail |
| Terminal Screws | Brass 8-32 |
| Face Material | Nylon |
|---|---|
| Line Contacts | Phosphor Bronze |
| Yoke | Zinc-Plated Steel |
Mechanical Specifications
| Product ID | Ratings are permanently marked on device |
|---|---|
| Terminal Accom. | 14-10 AWG |

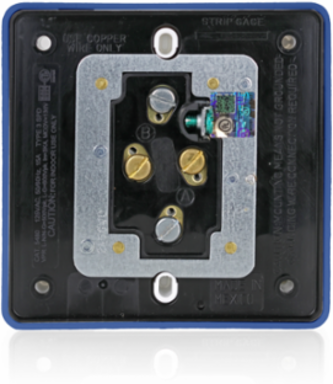

| Termination | Back or Side Wire |
| Screw Terminal Torque | 14-18 in-lbs |
|---|---|
| Terminal ID | Brass-Hot, Green-Ground, White-Neutral |
Product Features
| Brand | 4-in-1 |
|---|---|
| Device Type | Quadruplex Receptacle |

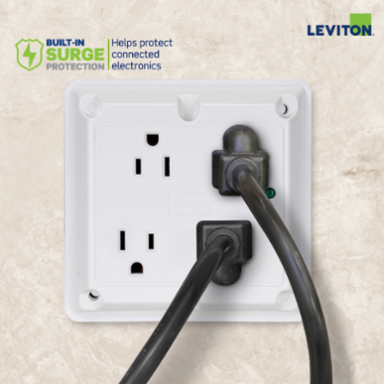

| Function | Surge Protective |
| Grounding | Grounding |
| Standards and Certifications | UL/CSA |
| Warranty | 5-Year Limited |
| Color | Blue |
|---|---|
| Feature | Surge |
| Grade | Commercial Specification Grade |
| NEMA | 5-15R |
| Strap Material | Steel |
Environmental Specifications
| Flammability | Rated V-2 per UL 94 |
|---|
| Operating Temperature | -40°C to 60°C |
|---|
Electrical Specifications
| Amperage | 15 A |
|---|---|
| Dielectric Voltage | Withstands 2000V per UL498 |
| Temperature Rise | Max 30C after 50 cycles OL at 150 percent rated current |
| Wire | 3 |
| Current Limiting | Full Rated Current |
|---|---|
| Pole | 2 |
| Voltage | 125 VAC |
AC Horsepower Ratings
| At Rated Voltage | 1/2 HP |
|---|
