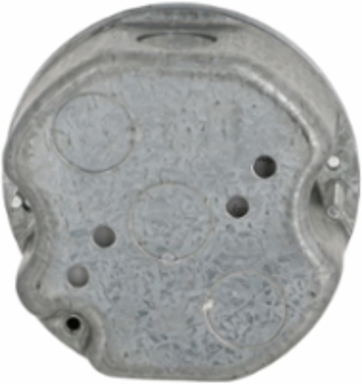

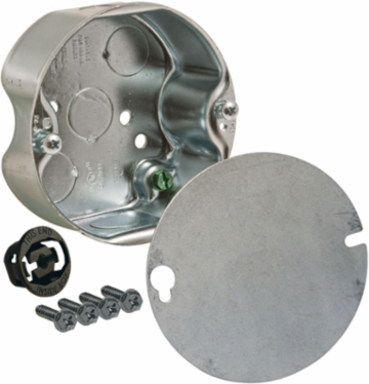

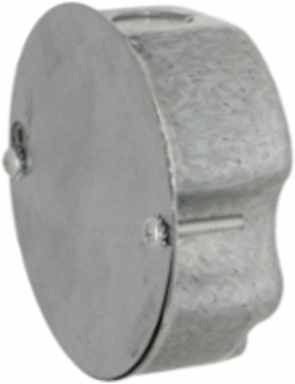

Raco 296 4 Inch Round Ceiling Rated Box, 1-1/2 Inch Deep, UL Listed, Steel Construction
- MPN: 296
- UPC: 050169002964
- PPN: HBL-296
- UNSPSC: 39121316
CAD
$22.69
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
4 in. Round Ceiling Rated Box, 1-1/2 in. Deep, Five 1/2 in. KO's
Features
- Constructed of pre-galvanized steel
- No protruding ground screw or fan mounting screws allows easy installation

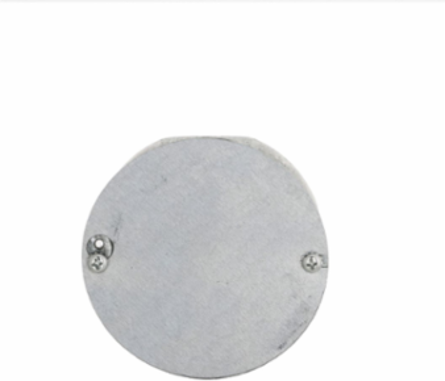

- Steel cover protects wires from damage, paint, and drywall compound during installation
- Maximum support load for ceiling fans 70 lbs. and 150 lbs. for static light fixtures
- #10-32, 1 in. long ceiling fan screws provided and provision for #8-32 fixture mounting screw
- Easy to follow instructions and mounting hardware included
- Supplied with five 1/2 in. knockouts
- 1/2 in. side knockouts
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
- Depth
- 1.5 in
- Height
- 4.25 in
- Size
- 4 in
- Knockouts
- 1/2 in
- Type
- Box
- Width
- 4.25 in
- Fixture Type
- Ceiling;Light
- Class Code
- D01
- Freight Class Code
- 06202000
- Image Actual Or Representative
- A
- MSDS Flag
- Yes
- Returnable Indicator
- Yes
- Sub Class Code
- D014D0140
- Ceiling Fan Rated
- Yes
- Fixture Lbs.
- 150 lb.
- Material
- Steel
- BOX SIZE
- 4.5x15.75x4.75 (in)
- Carton - Number of Sub Packs
- 8
- Carton - SCC-14 Next Lower Level Sub Pack
- 50169002964
- Each - Pack Description
- Each
- Pallet - GTIN - Package
- 60050169002966
- Pallet - Pack Description
- Pallet
- Pallet - Total Units
- 1536 EA
- Pallet Length
- 48.000 in
- Pallet Width
- 42.000 in
Actual Depth2 in
Description - SlangRound Ceiling Rated Box
Product TypeSteel Boxes and Covers
Cubic Capacity15.8 cu.in
StandardUL Listed
Weight0.819 lb.
Bracket TypeNo Bracket
ARRA CompliantContact Manufacturer
Description - Invoice4" RD CEILFAN 1-1/2DP 1/2KO
Harmonization Code7326908688
Lead Time105 wk
Order Multiple8 EA
Stock IndicatorS - Shelf Stock
Ceiling Fan Lbs.70 lb.
Drawn or WeldedDrawn
Raised GroundYes
Base Unit of MeasureEA
Carton - Gross Weight per Pack6.55 lb.
Carton - Pack DescriptionCarton
Carton - Total Units8 EA
Lowest Level UOMEach
Pallet - Number of Sub Packs192
Pallet - SCC-14 Next Lower Level Sub Pack50050169002969
Pallet Height44.500 in
Pallet Weight1302.600 lb.
NAICS Code3359326101
Certifications
- Buy American Compliant
- Contact Manufacturer
Certified ListedUL Listed
