Raco 931 GRID-BRACE 4 Inch Round Ceiling Box, 2-1/8 Inch Deep, Supports 70 lb.
- MPN: 931
- UPC: 050169009314
- PPN: HBL-931
- UNSPSC: 39121316
CAD
$86.75
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

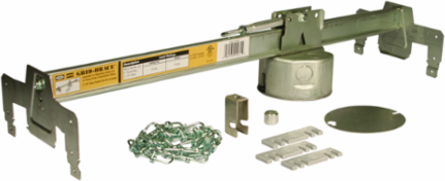

GRID-BRACE® with 4 in. Round Ceiling Box, 2-1/8 in. Deep, Two 1/2 & Four 1/2 & 3/4 in. Concentric KO's
Features
- Heavy-duty GRID-BRACE® for 24 in spans

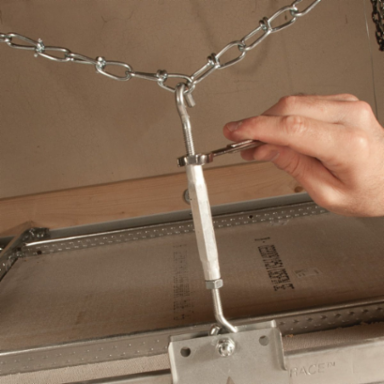

- Turnbuckle and 4 in chain section provided
- Yoke provided for threaded rod installation

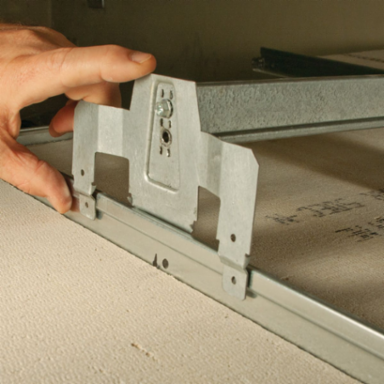

- Mount box anywhere on sliding bracket

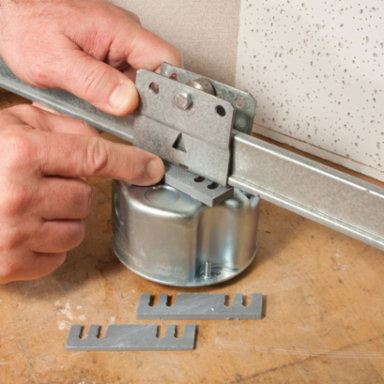

- Spacers provided for decorative ceiling tiles that are below the depth of metal grid for flush mounting of box
- #10-32 grade 5, 1 in ceiling fan screws included
- Easy to follow insructions included
- 70 lb. max support for fan or fixture
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
- Dimensions
- 24.5 in x 6.75 in x 4.4 in
- Length
- 24.5 in
- Color
- Gray
- Knockouts
- 1/2 in;1/2 - 3/4 in Combination (TKO)
- Standard
- UL Listed
- Weight
- 3.5 lb.
- Fixture Type
- Ceiling;Light
- Class Code
- D01
- Freight Class Code
- 06202000
- Image Actual Or Representative
- A
- MSDS Flag
- Yes
- Returnable Indicator
- Yes
- Sub Class Code
- D014D0141
- Ceiling Fan Rated
- Yes
- Fixture Lbs.
- 70 lb.
- Suspended Ceiling
- Yes
- Series
- GRID-BRACE® Series
- Base Unit of Measure
- EA
- Box Type
- Fan Fixture Box
- Carton - Number of Sub Packs
- 4
- Carton - SCC-14 Next Lower Level Sub Pack
- 50169009314
- Each - Pack Description
- Each
- Pallet - GTIN - Package
- 70050169009313
- Pallet - Pack Description
- Pallet
- Pallet - Total Units
- 80 EA
- Pallet Length
- 48.000 in
- Pallet Width
- 42.000 in
Depth2.125 in
Height4.4 in
Product TypeSteel Boxes and Covers
Cubic Capacity22.3 cu.in
Size24.5 in x 6.75 in x 4.4 in
TypeBox
Width6.75 in
ARRA CompliantContact Manufacturer
Description - InvoiceDROP CEILING BAR HANGER W 2-1/8" DP BOX
Harmonization Code7326908688
Lead Time91 wk
Order Multiple4 EA
Stock IndicatorS - Shelf Stock
Ceiling Fan Lbs.70 lb.
Drawn or WeldedDrawn
Raised GroundYes
MaterialSteel
Proposition 65 Warning RequiredNo
BOX SIZE7.375x25.5x12.25 (in)
Carton - Gross Weight per Pack14 lb.
Carton - Pack DescriptionCarton
Carton - Total Units4 EA
Lowest Level UOMEach
Pallet - Number of Sub Packs20
Pallet - SCC-14 Next Lower Level Sub Pack50050169009319
Pallet Height42.688 in
Pallet Weight325.000 lb.
NAICS Code3359326101
Certifications
- Buy American Compliant
- Contact Manufacturer
Certified ListedUL Listed
