Raco 299 4 Inch Round Ceiling Rated Box, 2-1/8 Inch Deep, 70 lbs Support Load, 5 Knockouts
- MPN: 299
- UPC: 050169002995
- PPN: HBL-299
- UNSPSC: 39121316
CAD
$33.43
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

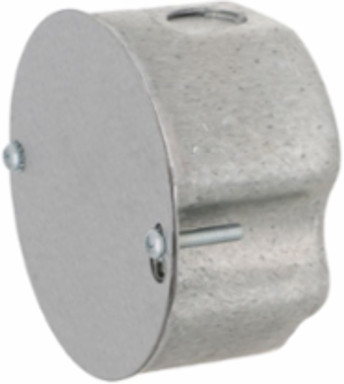

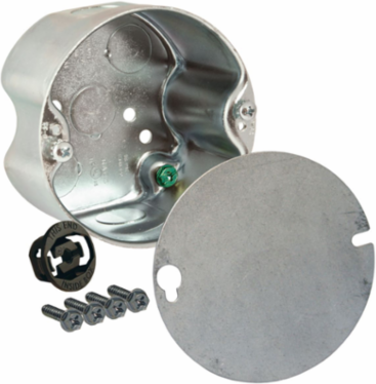

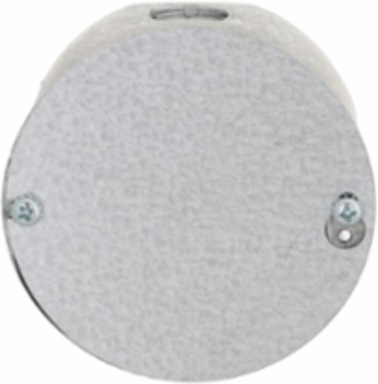

4 in. Round Ceiling Rated Box, 2-1/8 in. Deep, Five 1/2 in. KO's
Features
- Constructed of pre-galvanized steel
- No protruding ground screw or fan mounting screws allows easy installation
- Steel cover protects wires from damage, paint, and drywall compound during installation
- Maximum support load for ceiling fans 70 lbs. and 150 lbs. for static light fixtures
- #10-32, 1 in. long ceiling fan screws provided and provision for #8-32 fixture mounting screw
- Easy to follow instructions and mounting hardware included

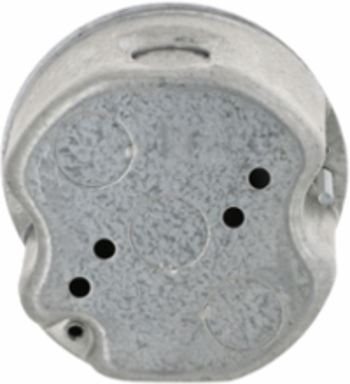

- Supplied with five 1/2 in. knockouts
- 22.4 cu. in. capacity
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | China |
|---|---|
| Depth | 2.125 in |
| Height | 4.25 in |
| Size | 4 in |
| Cubic Capacity | 22.4 cu.in |
| Standard | UL Listed |
| Weight | 0.9 lb. |
| Bracket Type | No Bracket |
| ARRA Compliant | Contact Manufacturer |
| Description - Invoice | 4" RD CEILFAN 2-1/8DP 1/2KO |
| Harmonization Code | 7326908688 |
| Lead Time | 105 wk |
| Order Multiple | 6 EA |
| Stock Indicator | S - Shelf Stock |
| Buy America(n) Qualified | Contact Manufacturer |
| Ceiling Fan Rated | Yes |
| Fixture Lbs. | 150 lb. |
| Material | Steel |
| Proposition 65 Warning Required | No |
| BOX SIZE | 4.5x15.75x4.75 (in) |
| Carton - Gross Weight per Pack | 5.4 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 6 EA |
| Lowest Level UOM | Each |
| Pallet - Number of Sub Packs | 216 |
| Pallet - SCC-14 Next Lower Level Sub Pack | 50050169002990 |
| Pallet Height | 44.500 in |
| Pallet Weight | 1081.800 lb. |
| NAICS Code | 3359326101 |
| Actual Depth | 2.56 in |
|---|---|
| Description - Slang | Round Ceiling Rated Box |
| Product Type | Steel Boxes and Covers |
| Color | Gray |
| Knockouts | 1/2 in |
| Type | Box |
| Width | 4.25 in |
| Fixture Type | Ceiling;Light |
| Class Code | D01 |
| Freight Class Code | 06202000 |
| Image Actual Or Representative | A |
| MSDS Flag | Yes |
| Returnable Indicator | Yes |
| Sub Class Code | D014D0140 |
| Ceiling Fan Lbs. | 70 lb. |
| Drawn or Welded | Drawn |
| Raised Ground | Yes |
| Number of Gang(s) | 1-Gang |
| Base Unit of Measure | EA |
| Box Type | Fan Fixture Box |
| Carton - Number of Sub Packs | 6 |
| Carton - SCC-14 Next Lower Level Sub Pack | 50169002995 |
| Each - Pack Description | Each |
| Pallet - GTIN - Package | 60050169002997 |
| Pallet - Pack Description | Pallet |
| Pallet - Total Units | 1152 EA |
| Pallet Length | 48.000 in |
| Pallet Width | 42.000 in |
Certifications
| Buy American Compliant | Contact Manufacturer |
|---|
| Certified Listed | UL Listed |
|---|
