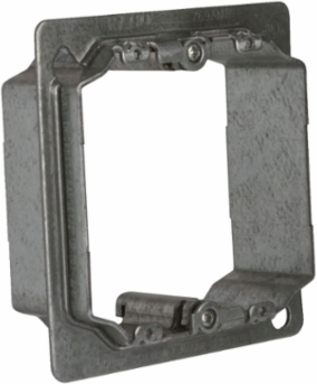

Raco 769AMR 4 Inch Square Adjustable Mud Ring, 2-Gang, Depth Adjustable 1/2 to 1-3/8 Inch
- MPN: 769AMR
- UPC: 050169807699
- PPN: HBL-769AMR
- UNSPSC: 39121304
CAD
$15.26
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
4 in. Square Adjustable Mud Ring, Two Device
Features
- 1/2 in. to 1-3/8 in. adjustablity range
- Depth adjusted by 2 screws located on opposite sides
- Cubic Capacity: 8 cu in min/15.5 cu in max
- Adjustment screws are clearly visible and accessible even after device is installed
- All screws are inside of ring eliminating damage from router
- Design allows 2-gang cover to be installed without removing box screws
- For use with 2-1/8 in. deep boxes
- UL Listed
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
- ChannelSightWidgetId
- 705
- Height
- 4.2 in
- Size
- 4 in
- Standard
- UL Listed
- Weight
- 0.476 lb.
- Class Code
- D01
- Freight Class Code
- 06202000
- Image Actual Or Representative
- A
- Drawn or Welded
- Drawn
- Material
- Steel
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 12.432 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 25
- Pallet Height
- 48.375 in
- Pallet Weight
- 1350.360 lb.
- NAICS Code
- 3359326102
Actual Depth1.41 in
Description - SlangAdjustable Mud Ring
Product TypeCover
ShapeSquare
TypeMud Ring
Width4.2 in
Description - Invoice4SQ ADJ MUD RING - TWO DEVICE
Harmonization Code7326908688
Sub Class CodeD01D010
Paintable/StainableNo
Number of Gang(s)2-Gang
BOX SIZE6.100x14.300x8.900 (in)
Carton - Number of Sub Packs25
Carton - SCC-14 Next Lower Level Sub Pack00050169807699
Pallet - GTIN - Package70050169807698
Pallet Length48.000 in
Pallet Width42.000 in
Certifications
- Certified Listed
- UL Listed
