Raco

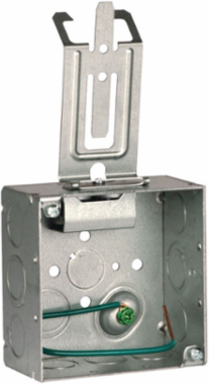

Raco 232SCM 4 in. Square Box, Welded with STAB-IT® Connector, 2-1/8 in. Deep, Raised Ground, 8 in. #12 Solid Copper Pigtail, Cable Management Clip

4 in. Square Box, Welded with STAB-IT® Connector, 2-1/8 in. Deep, Raised Ground, 8 in. #12 Solid Copper Pigtail, Cable Management Clip
  • MPN: 232SCM
  • UPC: 050169892329
  • PPN: HBL-232SCM
  • UNSPSC: 39121303

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$15.54/ EA

Description

4 in. Square Box, Welded with STAB-IT® Connector, 2-1/8 in. Deep, Raised Ground, 8 in. #12 Solid Copper Pigtail, Cable Management Clip

Features

  • Welded steel construction with STAB-IT® connector and cable management clip
  • 4 in. square x 2-1/8 in. deep
  • TKO® Knockouts allow for design and installation flexibility
  • Supplied with seven 1/2 in. and four 1/2-3/4 in. TKO® knockouts
  • Combination Phillips/slotted screw heads
  • 30.3 cu. in. capacity
  • Includes 8 in. #12 solid copper ground pigtail
  • Acceptable for use in 2-hour fire rated walls

Specifications

Specifications

Country of Origin
China
Description - Slang
Square Box
Size
4 in
Cubic Capacity
30.3 cu.in
Knockouts
1/2 in;1/2 - 3/4 in Combination (TKO)
Type
Box
Weight
1.052 lb.
Shape
Square
Class Code
D01
Freight Class Code
06202000
Image Actual Or Representative
A
Sub Class Code
D01D010
Fire Resistance
Yes
Series
STAB-IT®
BOX SIZE
8.500x18.750x7.375 (in)
Carton - Number of Sub Packs
25
Carton - SCC-14 Next Lower Level Sub Pack
00050169892329
Each - Pack Description
Each
Pallet - GTIN - Package
70050169892328
Pallet - Pack Description
Pallet
Pallet - Total Units
1750 EA
Pallet Length
48.000 in
Pallet Width
42.000 in
Actual Depth2.2 in
Height4 in
ColorGray
Depth2.125 in
StandardUL Listed
Width4 in
Bracket TypeNo Bracket
ARRA CompliantContact Manufacturer
Description - Invoice4SQBX 2-1/8DP 1/2-3/4TKO STABIT CBL MGMT
Harmonization Code7326908688
MSDS FlagYes
Drawn or WeldedWelded
MaterialSteel
Base Unit of MeasureEA
Carton - Gross Weight per Pack26.31 lb.
Carton - Pack DescriptionCarton
Carton - Total Units25 EA
Lowest Level UOMEach
Pallet - Number of Sub Packs70
Pallet - SCC-14 Next Lower Level Sub Pack50050169892324
Pallet Height48.000 in
Pallet Weight1886.700 lb.

Certifications

Certified Listed
UL Listed

Downloads
