Raco

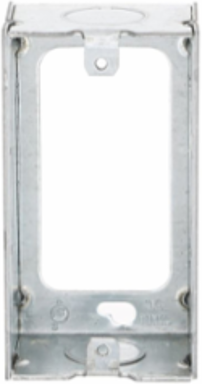

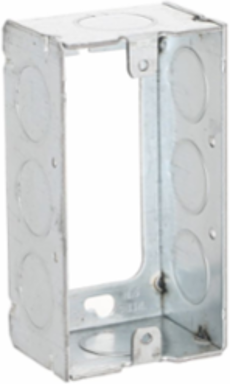

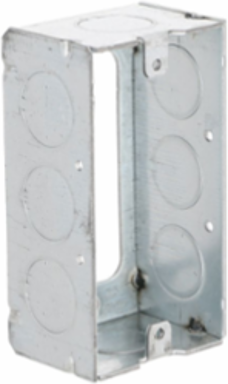

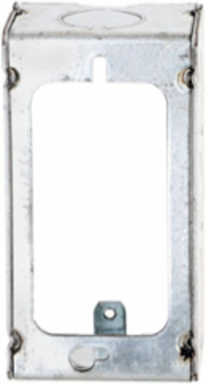

Raco 653 Welded Handy Box 4 in x 2 in, 1-1/2 in Deep, 11.5 cu in Capacity, Eight 1/2 in KO's

Welded Handy Box 4 in x 2 in, 1-1/2 in Deep, 11.5 cu in Capacity, Eight 1/2 in KO's
Welded Handy Box 4 in x 2 in, 1-1/2 in Deep, 11.5 cu in Capacity, Eight 1/2 in KO's
Welded Handy Box 4 in x 2 in, 1-1/2 in Deep, 11.5 cu in Capacity, Eight 1/2 in KO's
Welded Handy Box 4 in x 2 in, 1-1/2 in Deep, 11.5 cu in Capacity, Eight 1/2 in KO's
  • MPN: 653
  • UPC: 050169006535
  • PPN: HBL-653
  • UNSPSC: 39121303

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$3.72/ EA

Description

4 in. x 2 in. Handy Box, Welded, 1-1/2 in. Deep, Eight 1/2 in. KO's

Features

  • Welded construction
  • 4 in. x 2 in., 1-1/2 in. deep
  • Supplied with eight 1/2 in. knockouts
  • 11.5 cu. in. capacity
  • Acceptable for use in 2-hour fire rated walls

Specifications

Specifications

Standard
UL Listed
Stock Indicator
S - Shelf Stock
Actual Depth
1.563 in
Description - Slang
Handy Box
Product Type
Steel Boxes and Covers
Width
2.125 in
Cubic Capacity
11.5 cu.in
Type
Box
Description - Invoice
HNDYBX EXT 4x2 1-1/2DP 1/2KO
Harmonization Code
7326909999
MSDS Flag
Yes
Returnable Indicator
Yes
Drawn or Welded
Welded
Wiring System
Conduit
Base Unit of Measure
EA
Carton - Gross Weight per Pack
10.1 lb.
Carton - Pack Description
Carton
Carton - Total Units
25 EA
Lowest Level UOM
Each
Pallet - Number of Sub Packs
144
Pallet - SCC-14 Next Lower Level Sub Pack
40050169006533
Pallet Height
46.500 in
Pallet Weight
1499.400 lb.
ARRA CompliantContact Manufacturer
Country of OriginUnited States
Depth1.5 in
Height4 in
Weight0.404 lb.
Bracket TypeNo Bracket
Knockouts1/2 in
Class CodeD01
Freight Class Code06105700
Image Actual Or RepresentativeA
Order Multiple25 EA
Sub Class CodeD016D0162
Fire ResistanceYes
MaterialSteel
BOX SIZE5.125x11.500x9.250 (in)
Carton - Number of Sub Packs25
Carton - SCC-14 Next Lower Level Sub Pack50169006535
Each - Pack DescriptionEach
Pallet - GTIN - Package70050169006534
Pallet - Pack DescriptionPallet
Pallet - Total Units3600 EA
Pallet Length48.000 in
Pallet Width42.000 in

Certifications

Buy American Compliant
Contact Manufacturer
EU RoHS Indicator
Yes
Certified ListedUL Listed
