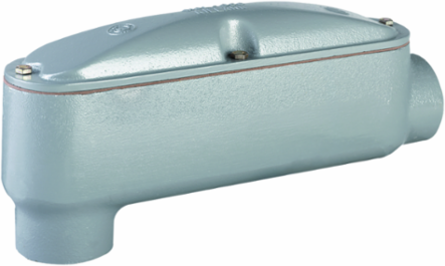

Killark MOLB-0 4 Inch LB Hub Mogul Conduit Body, Aluminum, 33.125 in Length, 495 cu. in Volume
- MPN: MOLB-0
- UPC: 783936410159
- PPN: HBL-MOLB-0
- UNSPSC: 39131708
CAD
$3043.02
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
4" LB Hub, Aluminum Mogul Conduit Body
Features
- A raised dome cover permits additional wiring room
- Furnished with captive ss screws and gasket
- LBD, C and UB Series available with builtin cable-pulling rollers on sizes 1-1/2” and larger. Add -WR to catalog number. Example MOLBD-5-WR.
- A raised dome cover provides additional wiring room. Furnished with cover and gasket. Volume is 495 cu. in.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Hazardous Rating(s)
- Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b) (Class I, Division 2) or 502.10, 503.10, and 505.15 (Class I Zone 2).
- Color
- Gray
- Height
- 9 in
- Length
- 33.125 in
- Type
- Mogul Conduit Body With Cover & Gasket
- Engineering Drawing 1 Display Text
- MOLB-9 & 0 Engineering Drawing
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- MOL SERIES 4" (CB)
- Harmonization Code
- 7609000000
- Lead Time
- 42 wk
- Order Multiple
- 1 EA
- Sub Class Code
- D30D230
- Hub Pattern
- LB
- Series
- Moguls Series
- BOX SIZE
- (in)
- Master Pack Description
- Each
Dimensions33.125 in x 7 in x 9 in
ApplicationMogul fittings are normally used where the standard "O" Series conduit bodies do not offer a sufficient amount of wiring room. For right angle bends where splices, pulls, and taps are needed in a weather-proof chamber.
FinishPowder Epoxy Paint
Hub Size4"
Special FeaturesA raised dome cover provides additional wiring room. Furnished with cover and gasket. Volume is 495 cu. in.
Width7 in
Finish TypePowder Epoxy Paint
Class CodeD30
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
Gross Weight with Packaging16.95
MaterialAluminum, Copper Free (less than 4/10 of 1%)
Base Unit of MeasureEA
Carton - SCC-14 Next Lower Level Sub Pack00783936410159
NAICS Code3359323110
Certifications
- EU RoHS Indicator
- Contact Manufacturer
