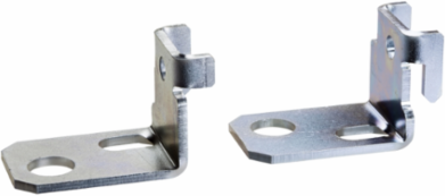

Schneider Electric NSYOL6GF Steel Fixing Bracket for Plinth, 4 mm Thickness, 30 mm Width, 32.5 mm Height
- MPN: NSYOL6GF
- PPN: SCH-NSYOL6GF
- UNSPSC: 39121327
CAD
$116.52
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Designed for versatility and durability, these steel brackets from Schneider Electric are essential for securely fixing the plinth to the floor in various PanelSeT applications, including models like S3D, CRN, SF, SM, and SD. With a robust thickness of 4 mm and a zinc-coated surface finish, these brackets ensure long-lasting performance in demanding environments. Measuring 53 mm in depth, 30 mm in width, and 32.5 mm in height, they provide reliable support and stability, making them an ideal choice for multi-purpose use in automation and control settings. Each set includes one fixing bracket, allowing for straightforward installation using M12 screws, and is backed by an 18-month warranty for peace of mind.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Spain |
|---|---|
| Width | 1.18 in |
| Depth | 53 mm |
| Height | 1.28 in |
|---|---|
| Weight | 200 g |
Important Information Attributes
| Persona Type Ids | LC, OM, OM8, PB, SI |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Enclosure Nominal Dimensions | -, - |
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 0.5 kg CO2 eq., 0.470169521 |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 0.9 kg CO2 eq., 0.869023693 |
| Local Data Status | Publishable |
| Return Indicator | N |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | No |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Device Composition | 4 bracket |
| Fixing Mode | by screws M12 - on floor |
| Mounting Support | plinth kit |
| Product Or Component Type | fixing bracket |
| Range | PanelSeT |
| Software Version | v5.9.4 |
| Sustainable Packaging | No |
| Total Lifecycle Carbon Footprint | 1 kg CO2 eq. |
| Data Source | extrapolated product |
| Height Useful | 32.5 mm |
| Width Real | 30 mm |
| Nbr. Of Units In Pkg. | 1 |
| Warranty In Months | 18 |
| Functional Unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Persona Type Names | Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Carbon Footprint Of The Distribution Phase A4 | 0.038499657, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase A5 | 0.044346799, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | kg CO2 eq., 0 |
| Local Publishable Date | 2026-04-14 |
| Weee Scope | Out |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1916 |
| China Rohs In Scope | No |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Device Application | multi-purpose |
| Energy Efficiency Optimized | False |
| Material | steel |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Quantity Per Set | set of 1 |
| Returnability | No |
| Surface Finish | zinc coated |
| Thickness | 4 mm |
| Database Version | 2022-01 |
| Height Nominal | 32.5 mm |
| Width Nominal | 30 mm |
| Accessory / Separate Part Category | fixing accessory |
| Customs Code | 8302500000 |
| Functional Unit Description | Protect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure with dimensions H2000mm x W800mm x D600mm, while protecting against mechanical impacts (IK10-IEC 62262) and the penetration of solid objects and liquids (IP55-IEC 60529) as per the standard IEC 62208. |
| Functional Unit Unit | unit |
| Recyclability Potential In % | 98 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope) |
|---|---|
| Reach Free Shvc | Yes |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 1.42203967 |
| Eu Rohs Directive | Compliant |
| Packaging Without Single Use Plastic | No |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Pep Verification Date | 2023-03-30 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1109023EN |
| Packaging Made With Recycled Cardboard | No |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP1109023EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
General Attributes
| Product Or Component Type | fixing bracket |
|---|
ETIM
| ETIM 8 | EC002625 |
|---|---|
| ETIM 10 | EC002625 |
| ETIM 9 | EC002625 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
