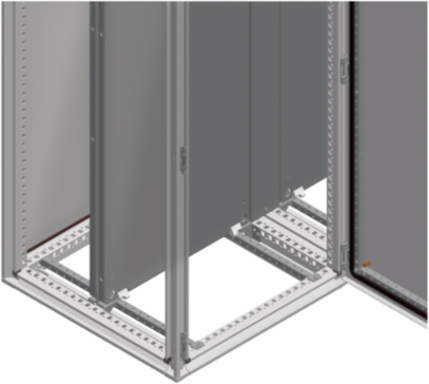

Schneider Electric NSYSIBTB Mounting Brackets for PanelSeT SF, 52 mm Width, 30 mm Height, Set of 2
- MPN: NSYSIBTB
- PPN: SCH-NSYSIBTB
CAD
$21.80
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
These versatile fixing brackets are designed to securely mount intermediate plates in a back-to-back position, providing a reliable solution for your panel assembly needs. Crafted from durable zinc-coated steel, they offer exceptional strength and stability, making them suitable for various applications within enclosures. With adjustable features allowing a pitch of 25 mm, these brackets ensure a perfect fit in your setup, while their compact dimensions of 52 mm in width and 30 mm in height make them ideal for efficient space utilization. This set includes two brackets, designed for easy installation on two intermediate mounting plates or directly onto the structure of the enclosure, ensuring a robust and organized configuration for your electrical components.
