Tripp Lite B140-004 4-Port DVI over Cat5/Cat6 Splitter/Extender - DVI-D Single Link, Up to 200 ft., TAA

4-Port DVI over Cat5/Cat6 Splitter/Extender - DVI-D Single Link, Up to 200 ft., TAA
4-Port DVI over Cat5/Cat6 Splitter/Extender - DVI-D Single Link, Up to 200 ft., TAA
4-Port DVI over Cat5/Cat6 Splitter/Extender - DVI-D Single Link, Up to 200 ft., TAA
  • MPN: B140-004
  • UPC: 037332156693
  • PPN: TRP-B140-004

Spec sheet

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$496.46/ EA

Description

Transmit a DVI-D Single-Link signal to four monitors up to 200 ft. away using a single Cat5e/6 patch cable

Features

  • Supports DVI-D Single-Link video resolutions up to 1920 x 1080 @ 60Hz
  • For longer distances - Use a B140-1A0 active receiver unit to extend a 1920 x 1080 @ 60Hz signal up to 150 ft., or a 1024 x 768 @ 60Hz signal up to 200 ft.
  • For shorter distances - Use a B140-1P0 passive receiver unit to extend a 1920 x 1080 @ 60Hz signal up to 50 ft., or a 1024 x 768 @ 60Hz signal up to 100 ft.
  • Use 24AWG, Solid Wire Cat5e/6 cable, such as Tripp Lite's N202-Series, to achieve maximum distance and resolution
  • Can further expand the range and number of monitors by adding B140-110 repeaters
  • Compatible with all operating systems
  • Plug and play, no software or drivers required
  • Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
  • 1-year limited warranty

Specifications

Features & Specifications

Technology
DVI

Connections

Ports
4
Side B - Connector 1

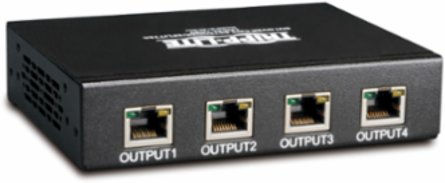

(4) RJ45 (FEMALE)

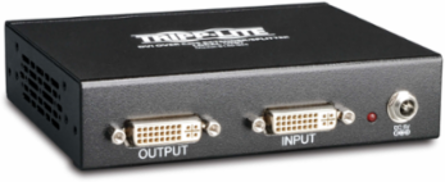

Side A - Connector 1DVI-I DUAL-LINK (FEMALE) (WIRED TO DVI-D SINGLE-LINK)
Side B - Connector 2DVI-I (FEMALE)

Physical

Color
Black
Optional Mounting Accessory Notes
Up to three B140-004 local units can be mounted in 1U of rack space using a Tripp Lite B132-004 -RB Extender/Splitter 19in rackmount bracket
Shipping Weight (lbs.)
1.80

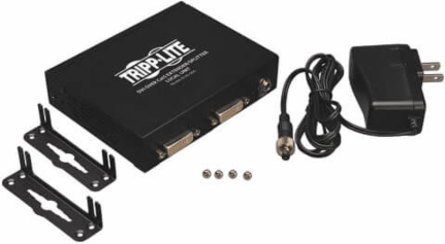

Included Mounting AccessoriesYes
Shipping Dimensions (hwd / in.)2.10 x 10.10 x 6.40
Unit Dimensions (hwd / in.)1.125 x 5 x 4

Communications

Max 1024 x 768 Range (ft)
200
Max 1440 x 900 Range (ft)
150
Max 1080P Range (ft)
150
Max 640 x 480 Range (ft)
200
Max 1600 x 1200 Range (ft)
150
Max 480P Range (ft)200
Max 1080i Range (ft)150
Max 480i Range (ft)200
Max 800 x 600 Range (ft)200
Max 720P Range (ft)150

Overview

UPC Code
037332156693

Warranty

Product Warranty Period (Worldwide)
1-year limited warranty
