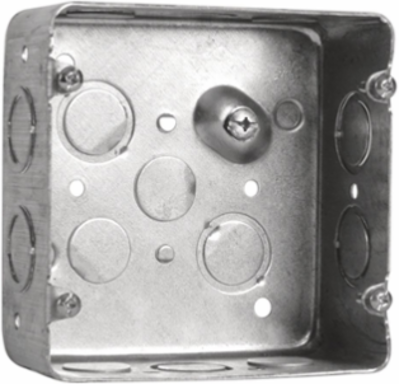

4 ¹¹⁄₁₆" Square Box, 2 ⅛" Deep, ½ & ¾" KO (30-Pack)

4 ¹¹⁄₁₆" Square Box, 2 ⅛" Deep, ½ & ¾" KO (30-Pack) - https://images.province-electric.com/HBL-72171KBAR/4-square-box-2-1-8-deep-1-medium-alt-wjtu.webp

Documentation & Downloads

Hubbell 72171KBAR 4 ¹¹⁄₁₆" Square Box, 2 ⅛" Deep, ½ & ¾" KO (30-Pack)

MPN: 72171KBAR
UPC: 626463002308
PPN: HBL-72171KBAR
UNSPSC: 39121308

CAD

$5.92

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

Qty:

Loading add to cart quantity...

Looking to buy a large quantity?

To view product inventory

Spec sheet

Compare

Description

4 ¹¹⁄₁₆" Square Box, 2 ⅛" Deep, 42 cu in with Raised Ground Screw with Concentric, ½ & ¾" KO (30-Pack).

Documentation & Downloads

Specifications

Key Specifications

Actual Depth: 2.125 in

Width: 15.000 in

Application: Boxes are installed in ceiling or wall junctions or stove & dryer receptacles. Square boxes are used where multiple conductor runs are split into two or more directions to bring power to a number of electrical devices.

Knockouts: 6 x 1/2 in, 8 x ½-3/4 in Comb ination

Type: Square Box, Box

Weight: 0.81 lb.

Freight Class Code: 06168002

Image Actual Or Representative: A

Drawn or Welded: Drawn

Knockouts - Bottom: 2 x 1/2in, 2 x ½-3/4in Combination

Knockouts - Side: 4 x 1/2in, 2 x ½-3/4in Combination

Raised Ground: Yes

Material: Steel

Base Unit of Measure: EA

Case Weight: 35.000 lb.

Pallet Length: 48.000 in

Pallet Width: 40.000 in

Country of OriginCA

Each - Width15.000 in

ColorGray

StandardCSA

Bracket TypeNo Bracket

Class CodeT01

Harmonization Code7326909090

Sub Class CodeT01T010

GangableNo

Knockouts - End4 x ½-3/4in Combination

Plaster EarsNo

Wiring SystemConduit

Number of Gang(s)2-Gang

Carton - SCC-14 Next Lower Level Sub Pack00626463002308

Pallet Height48.000 in

Pallet Weight1048.000 lb.

Certifications

Certified Listed: CSA
