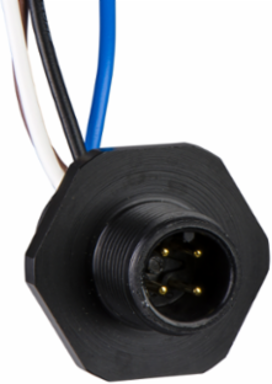

Telemecanique Sensors XZCE11P124M Adaptor, plastic, tapped hole Pg 11, for male connector, M12, 4 wire
- MPN: XZCE11P124M
- PPN: TES-XZCE11P124M
CAD
$84.80
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Adaptor, plastic, tapped hole Pg 11, for male connector, M12, 4 wire
Documentation & Downloads
Specifications
Key Specifications
| Thread Type | Pg 11 |
|---|---|
| Accessory / Separate Part Category | cabling accessories |
| Cable Composition | 4 x 0.34 mm² |
| Accessory / Separate Part Designation | 4-wire connector adaptor |
|---|---|
| [In] Rated Current | 4 A |
| Accessory / Separate Part Type | connector adaptor |
Complementary
| Total Number Of Wires | 4 |
|---|---|
| Maximum Resistance Across Terminals | 5000 mOhm |
| Cable Connector Fixing | screw-on |
| Electrical Connection | 1 male connector M12 5 straight |
| Net Weight | 0.02 kg |
| [Ue] Rated Operational Voltage | 250 V AC || 300 V DC |
|---|---|
| Insulation Resistance | > 1000000000 Ohm |
| Cable Length | 100 mm |
| Body Material | plastic |
Environment
| Ambient Air Temperature For Operation | -25-80 °C |
|---|
| Ip Degree Of Protection | IP67 |
|---|
Contractual warranty
| Warranty | 18 months |
|---|
Offer Sustainability
| Rohs Exemption Information | Yes |
|---|---|
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Mercury Free | Yes |
|---|---|
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
