Telemecanique Sensors XZCE13P124M Adaptor, plastic, tapped hole Pg 13.5, for male connector, M12, 4 wire
- MPN: XZCE13P124M
- PPN: TES-XZCE13P124M
- UNSPSC: 39121528
CAD
$84.80
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

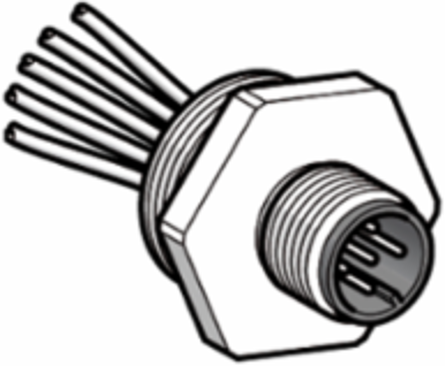

Adaptor, plastic, tapped hole Pg 13.5, for male connector, M12, 4 wire
Documentation & Downloads
Specifications
Key Specifications
- Thread Type
- Pg 13.5
- Accessory / Separate Part Category
- cabling accessories
- Cable Composition
- 4 x 0.34 mm²
Accessory / Separate Part Designation4-wire connector adaptor
Line Rated Current4 A
Accessory / Separate Part Typeconnector adaptor
Complementary
- Total Number Of Wires
- 4
- Maximum Resistance Across Terminals
- 5000 mOhm
- Cable Connector Fixing
- screw-on
- Electrical Connection
- 1 male connector M12 5 straight
- Net Weight
- 0.02 kg
[Ue] Rated Operational Voltage250 V AC || 300 V DC
Insulation Resistance> 1000000000 Ohm
Cable Length100 mm
Body Materialplastic
Environment
- Ambient Air Temperature For Operation
- -25-80 °C
Ip Degree Of ProtectionIP67
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Mercury FreeYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
