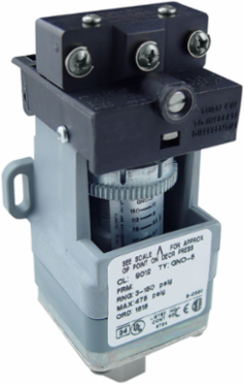

Telemecanique Sensors 9012GNO4 Pressure switch 9012G, adjustable scale, 2 thresholds, 1.5 to 75 PSIG
- MPN: 9012GNO4
- UPC: 785901543213
- PPN: TES-9012GNO4
- UNSPSC: 39122210
CAD
$382.27
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Pressure switch 9012G, adjustable scale, 2 thresholds, 1.5 to 75 PSIG
Documentation & Downloads
Specifications
Key Specifications
- Pressure Sensor Type
- electromechanical pressure switch
- Controlled Fluid
- hydraulic oil -40-250 °F) || non-corrosive liquids || air || non-corrosive gas
- Scale Type
- adjustable differential
- Pressure Switch Type Of Operation
- regulation between 2 thresholds
- Local Display
- without
- Fluid Connection Type
- 0.25 inch 18 NPTF UL 508
Pressure Sensor Size75 psi
Range Of Product9012G
Maximum Pressure240 psi
Contacts Type And CompositionNC-NO, SPDT, Form C, snap action, silver nickel contacts
Pressure Sensor Name9012G
Complementary
- Repeat Accuracy
- 4 %
- Pressure Actuator
- diaphragm nitrile (Buna-N)
- Terminal Block Type
- 4 screw terminals
- Setting
- internal
- [In] Rated Current
- 3 A 240 V AC A600 NEMA rating designation || 6 A 120 V AC A600 NEMA rating designation || 0.22 A 125 V DC R300 NEMA rating designation || 0.11 A 250 V DC R300 NEMA rating designation
- Cable Entry
- 0.5 inch NPT conduit entrance
- Electrical Circuit Type
- control circuit
- Approx Adjustable Differential At Mid Range
- 2.2-11 psi +/- 2.5 % full scale
- Depth
- 2.46 in
- Net Weight
- 2 lb(US)
Height5.41 in
Maximum Operating Rate120 cyc/mn
Short-Circuit Protection10 A cartridge overload and short-circuit protection gL
Mechanical Durability5000000 cycles
Range On Decreasing Pressure1.5-75 psi
Operating Positionany position
Electrical Connectionscrew-clamp terminals, AWG 22...AWG 12
Width2.06 in
Materials In Contact With Fluidnitrile (Buna-N) || zinc plated steel
Local Signallingwithout
Environment
- Product Certifications
- UL listed file E12158 CCN NKPZ || CSA LR26817 class 3218 02 || CE
- Standards
- UL 508 || CSA C22.2 No 14
- Shock Resistance
- 50 gn IEC 58-2-27
Ambient Air Temperature For Operation-10-185 °F
Nema Degree Of Protectionno enclosure rating (open device) UL 508
Vibration Resistance2 gn 40-150 Hz)IEC 68-2-6
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Circularity Profile
- ENVEOLI111210EN
- Eu Rohs Directive
- Not applicable, out of EU RoHS legal scope
Environmental DisclosureENVPEP111211EN
Reach RegulationReference contains Substances of Very High Concern above the threshold
