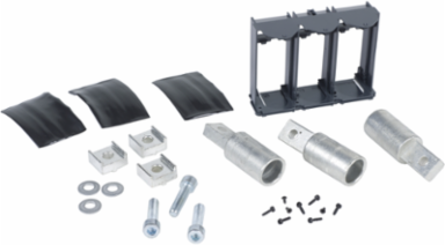

Square D YA400L71K3 PowerPact L Circuit Breaker Lug Kit, 400A, 3 Pole, Aluminum

MPN: YA400L71K3
UPC: 785901309819
PPN: SCH-YA400L71K3

$963.83

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Connection accessory, PowerPacT L, I-Line, compression lug kit, 250A, 3 pole, aluminum This is a connection accessory for PowerPacT L-Frame I-Line circuit breakers. This compression lug kit, has a rated current of 400A and is made of aluminum. This lug kit is for a 3 pole circuit breaker. This lug kit accepts 500 kcmil wire,C opper, 500...750 kcmil wire aluminum. This accessory complies with UL and CSA standards. With a tightening torque of 50-50 Nm with a cable cross section of 240-400 mm² and an AWG of 500...750 kcmil (Al), 50-50 Nm with a cable cross section of 240-240 mm² and an AWG of 500 kcmil (Cu), This accessory comes in a set of 3.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Mexico

Complementary Attributes

Line Rated Current	400-400 A

Important Information Attributes

Persona Type Ids	LC, OM, OM8, PB
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Location Of Connection	downstream, upstream
Tightening Torque	50-50 N.m 240-400 mm² (500...750 kcmil), 50-50 N.m 240-240 mm² (500 kcmil)
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	2
Traceability	No
Weee Scope	In
Scope Perimeter	At least in Europe
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	2543
China Rohs In Scope	No
Without Single Use Plastic	No
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Energy Efficiency Optimized	False
Product Availability	Stock - Normally stocked in distribution facility
Quantity Per Set	set of 3
Returnability	Yes
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8536904000

Persona Type Names	Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market Segmentation	Commercial, Industrial
Mounting Mode	unit mount, compression
Certificate Agency	CSA, UL
Local Publishable Date	2026-04-10
Stocking Flag	N
Serviceability	No
Field Service Division	PPIBS
Weee Product Category	4
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Awg Gauge	500 kcmil copper500...750 kcmil aluminium
Material	aluminium
Product Or Component Type	compression lug
Range Of Product	PowerPact L
Sustainable Packaging	No
Accessory / Separate Part Category	connection accessory
Package Weight(Lbs)	816.466 g
Warranty (In Months)	18

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
Recycled Metal Content At Cr Level	0 %
Eu Rohs Directive	Compliant By Exemption
Packaging Without Single Use Plastic	No

Take Back	No
Mercury Free	Yes
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
