Tripp Lite SR45UBSP1 45U Rack Enclosure Cabinet, 3000 lb Capacity, 24 Inch Wide, 42 Inch Deep
- MPN: SR45UBSP1
- UPC: 037332174864
- PPN: TRP-SR45UBSP1
CAD
$4356.80
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

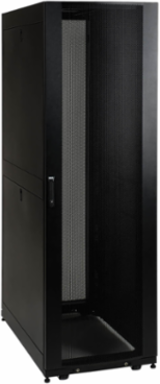

45U Rack Enclosure Cabinet, 3000 lb Capacity, 24 Inch Wide, 42 Inch Deep
Features
- 45U SmartRack enclosure with doors and side panels

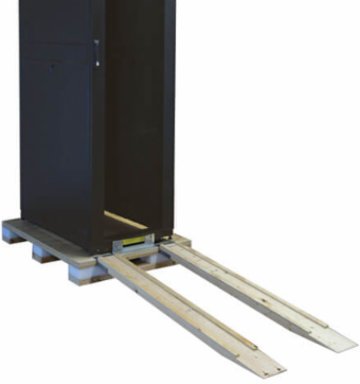

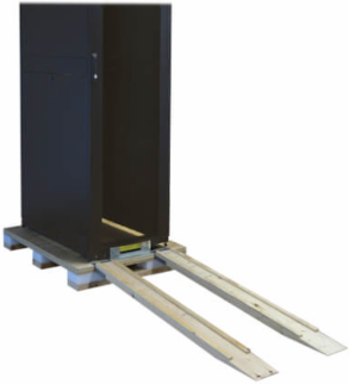

- Ships fully assembled on shock pallet with loading ramps
- Standard 24" (600mm) width and 42" (1050mm) depth for optimizing floor space
- 4 interior vertical posts with unthreaded square hole openings
- Massive front to rear ventilation capacity
- 3000 lb stationary / 2250 lb rolling load capacity

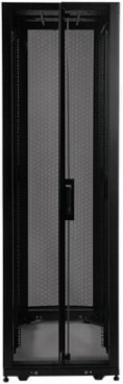

- Locking, removable, reversible front and rear doors
- Locking, removable side panels keyed alike with doors
- Meets all enclosure requirements towards PCI DSS (Payment Card Industry Data Security Standard) Compliance
- 5-year limited warranty
Documentation & Downloads
Specifications
Additional
- Rack Height
- 45U
- Weight Capacity - Rolling (lbs.)
- 2250 lb
- Maximum Device Depth (in.)
- 37 in.
- Shipping Dimensions (H x W x D)
- 90.25 x 26.00 x 45.00 in
- Shipping Weight (lbs.)
- 357 lb
- Rack Type
- Enclosure
- Grounding

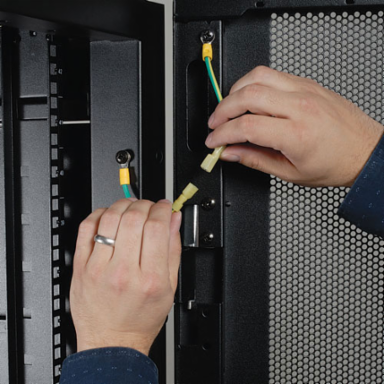

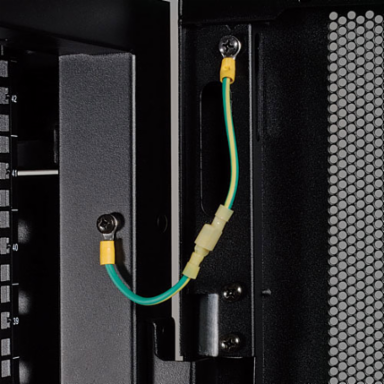

- Front and back rear door frames with threaded grounding points and quick-release ground wires
- Loading Rails
- 4 interior posts, square, unthreaded, adjustable in 1/4 in increments (4 to 37 in)
- Rear Door
- Locking, removable, reversible, split design
- Ventilation
- 65+% open door perforation, massive front to rear airflow

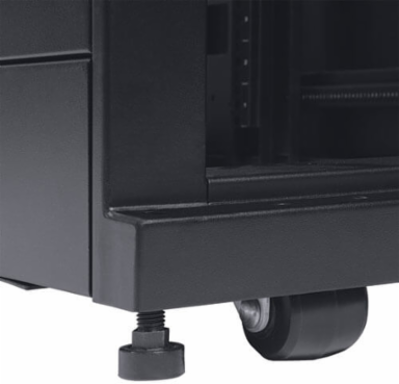

- Leveling Feet
- Removable
- Warranty
- 5-year limited warranty
Weight Capacity - Stationary (lbs.)3000 lb
Minimum Device Depth (in.)4 in.
Unit Dimensions (H x W x D)83.75 x 23.63 x 43 in
Unit Weight (lbs.)307 lb
Rack DepthStandard
ColorBlack
Material & FinishTextured powder coat finish
Front DoorLocking, removable, reversible

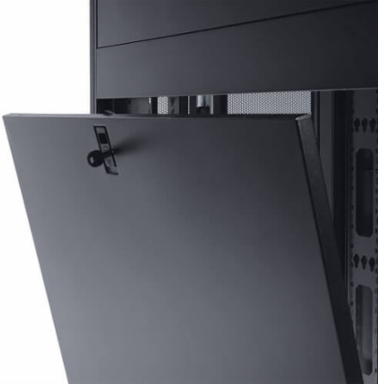

Side PanelsLocking, removable, half size, keyed alike with doors

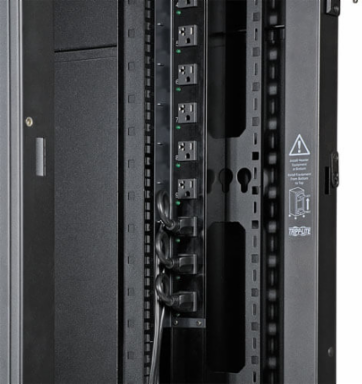

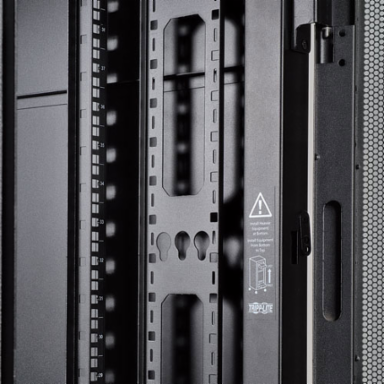

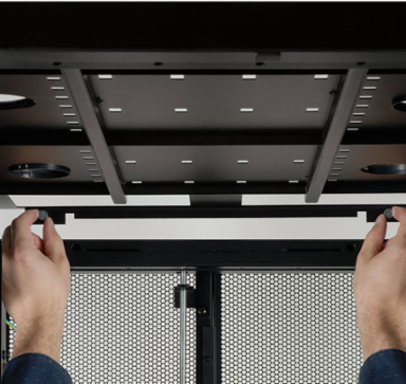

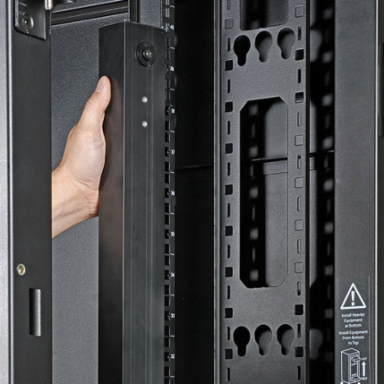

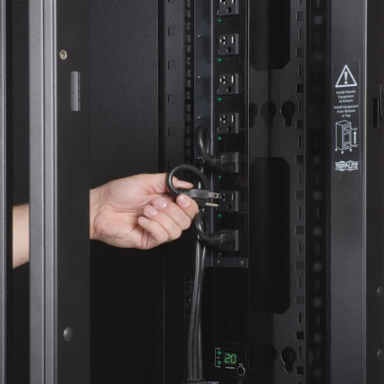

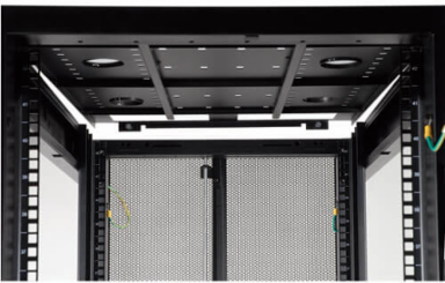

Built-in Cable ManagementYes, supports toolless 0U installation of up to 4 PDUs or cable managers on adjustable rails, open bottom, vented top panel with cable ports
Compliance & CertificationsPCI DSS, UL60950, RoHS, CE, IP20, EIA/ECA-310-E
