Tripp Lite SR45UBWDVRT 45U SmartRack Wide Rack Enclosure Cabinet, 30 Inch Wide, 3000 lb Capacity
Tripp Lite SR45UBWDVRT 45U SmartRack Wide Rack Enclosure Cabinet, 30 Inch Wide, 3000 lb Capacity
- MPN: SR45UBWDVRT
- UPC: 037332175274
- PPN: TRP-SR45UBWDVRT
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
Features

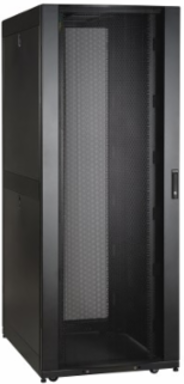

- 45U SmartRack enclosure with doors and side panels
- 30" (750mm) width and 42" (1050mm) depth

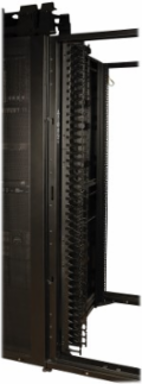

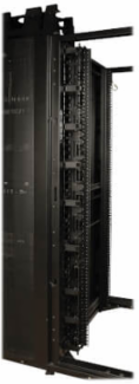

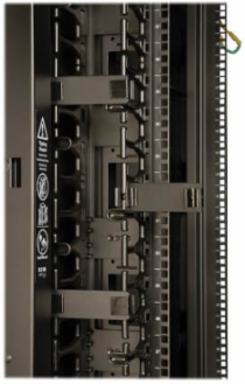

- Two pre-installed 6-ft vertical cable manager - high capacity for large cable bundles
- 4 interior vertical posts with unthreaded square hole openings
- Massive front to rear ventilation capacity
- 3000 lb stationary / 2250 lb rolling load capacity
- Locking, removable, reversible front and rear doors
- Locking, removable side panels keyed alike with doors
- Meets all enclosure requirements towards PCI DSS (Payment Card Industry Data Security Standard) Compliance
- 5-year limited warranty
Specifications
- Load Capacity Stationary
- 3000 lb
- Maximum Device Depth
- 37 in.
- Rack Height
- 45U
- Unit Dimensions
- 83.75 x 29.53 x 43 in (H x W x D)
- Shipping Dimensions
- 90.25 x 32 x 45 in (H x W x D)
- Built-in Cable Management
- Yes
- Certifications
- UL60950, RoHS, CE, IP20 Protection Rating, PCI DSS
- Color
- Black
- Rack Depth
- Standard
- Factory Preset Rack Depth
- 21.75 in.
- Door Type
- Locking, removable, reversible front and rear
- Rail Type
- Square mounting holes, unthreaded, adjustable in 0.25 in increments from 4 to 37 in
- Casters
- Preinstalled, heavy-duty, removable for easy positioning
Load Capacity Rolling2250 lb
Minimum Device Depth4 in.
Unit Weight340 lb
Shipping Weight390 lb
Warranty5-year limited warranty
GroundingFront and rear door frames, front and rear threaded grounding points
ApprovalsEIA/ECA-310-E
Rack TypeEnclosure
Extra WideYes
Material FinishTextured powder coat
Side PanelsLocking, removable, keyed alike with doors, half size
VentilationMassive front to rear ventilation, 65+% door perforation open space
Vertical Cable Managers2 pre-installed, 6 ft high, 3 in wide
