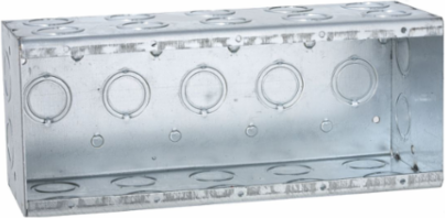

Raco 699 5-Gang Masonry Box, Nongangable, 3-1/2 Inch Deep, Grit 1/2-3/4 Inch Concentric Knockouts
- MPN: 699
- UPC: 050169006993
- PPN: HBL-699
- UNSPSC: 39121333
CAD
$28.42
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
5-Gang Masonry Box, Nongangable, 3-1/2 in. Deep, Twenty-Nine Concentric KO’s
Features
- Rugged welded design does not fall apart during construction.
- Available from one to six gang configurations in both 2-1/2" and 3-1/2" depths.
- Rectangular shape fits square cuts in block.
- Large volume design allows for additional work room inside the box.
- Standard 1/2" and 3/4" concentric knockouts.
- Device ears inside the box prevent mortar from getting in the device holes.
- Steel voltage partition #971 fits all 2-1/2" or 3-1/2" depths.
- Standard wall plates can be used.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|---|
| Depth | 3.5 in |
| Height | 3.75 in |
| Cubic Capacity | 112.3 cu.in |
| Standard | UL Listed |
| Weight | 2.23 lb. |
| Bracket Type | No Bracket |
| Class Code | D01 |
| Freight Class Code | 06202000 |
| Image Actual Or Representative | A |
| Order Multiple | 10 EA |
| Stock Indicator | S - Shelf Stock |
| Buy America(n) Qualified | TAA Compliant (All status valid till December 2026) |
| Gangable | No |
| Material | Steel |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 22.3 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 10 EA |
| Lowest Level UOM | Each |
| Pallet - Number of Sub Packs | 60 |
| Pallet - SCC-14 Next Lower Level Sub Pack | 50050169006998 |
| Pallet Height | 49.375 in |
| Pallet Weight | 1383.000 lb. |
| Standard Package Quantity | 25 |
| ChannelSightWidgetId | 705 |
|---|---|
| Description - Slang | Masonry Box |
| Product Type | Steel Boxes and Covers |
| Knockouts | 1/2 - 3/4 in Concentric |
| Type | Box |
| Width | 9.219 in |
| ARRA Compliant | Contact Manufacturer |
| Description - Invoice | MSNBX 5G 3-1/2DP 1/2&3/4CONC KO |
| Harmonization Code | 7326908688 |
| MSDS Flag | Yes |
| Returnable Indicator | Yes |
| Sub Class Code | D017D0172 |
| Drawn or Welded | Welded |
| Wiring System | Conduit |
| Number of Gang(s) | 5-Gang |
| BOX SIZE | 9.75x21.375x7.5 (in) |
| Carton - Number of Sub Packs | 10 |
| Carton - SCC-14 Next Lower Level Sub Pack | 50169006993 |
| Each - Pack Description | Each |
| Pallet - GTIN - Package | 70050169006992 |
| Pallet - Pack Description | Pallet |
| Pallet - Total Units | 600 EA |
| Pallet Length | 42.000 in |
| Pallet Width | 48.000 in |
| NAICS Code | 3359326101 |
Certifications
| Buy American Compliant | No |
|---|
| Certified Listed | UL Listed |
|---|
