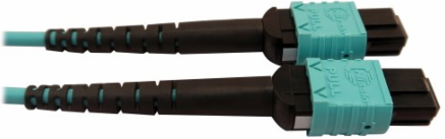

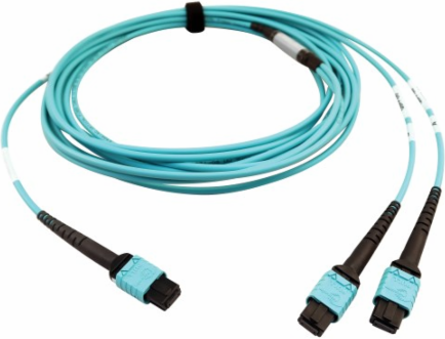

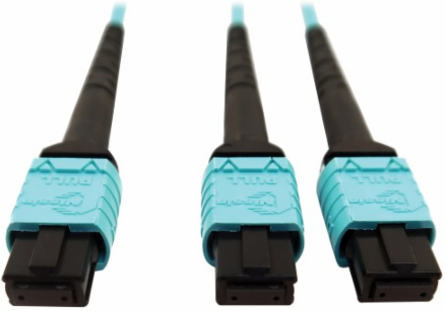

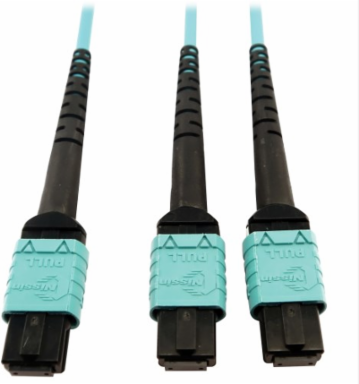

Tripp Lite N846D05M24BAQ Fiber Optic Cable, 400G Multimode OM4, 24F MTP/MPO-PC to (x2) 12F MTP/MPO-PC (F/F), Aqua, 5 m
- MPN: N846D05M24BAQ
- UPC: 037332258434
- PPN: TRP-N846D-05M-24BAQ
CAD
$728.34
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
400G Multimode 50/125 OM4 Plenum Fiber Optic Cable, 24F MTP/MPO-PC to (x2) 12F MTP/MPO-PC (F/F), Aqua, 5 m
Documentation & Downloads
Specifications
Dimensions
| Cable Length | 5 m (16.4 ft) |
|---|---|
| Side A - Connector 1 | 24F MPO (Female) |
| Endface Polish | PC |
| Clad Diameter | 125 microns |
| Primary Coating Diameter | 245 microns |
| Number of Fibers | 16 |
|---|---|
| Side B - Connector 1 | (2) 12F MPO (Female) |
| Polarity | Type B (Cross) |
| Core Diameter | 50 microns |
| Minimum Bend Radius | 20 mm (Dynamic); 10 mm (Static) |
Performance
| Network Compatibility | 400 Gbps |
|---|---|
| Transmission Distance | 100 m @ 850 nm Wavelength |
| Operating Temperature Range | -4 to 140°F (-20 to 60°C) |
| Operating Humidity Range | 5% to 85% RH, Non-Condensing |
| Technology | Multimode |
|---|---|
| Attenuation @ 850NM | 3.0 dB/km |
| Storage Temperature Range | -4 to 140°F (-20 to 60°C) |
| Storage Humidity Range | 35% to 65% RH, Non-Condensing |
Material
| Cable Jacket Color | Aqua |
|---|---|
| Cable Jacket Material | PVC |
| Connector Color | Aqua, Black |
|---|---|
| Cable Jacket Rating | OFNP |
Reference
| Product Warranty Period | Lifetime limited warranty |
|---|
