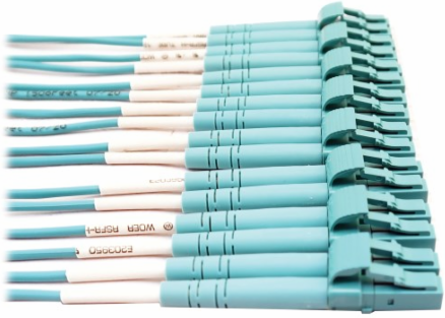

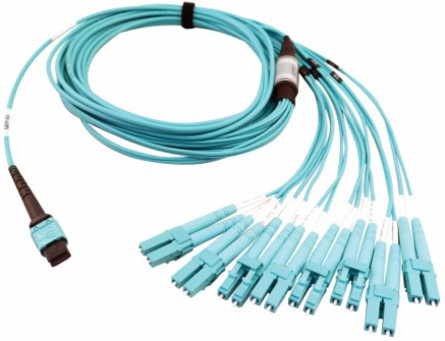

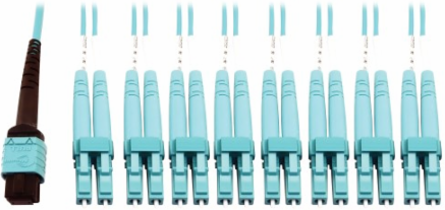

Tripp Lite N846D05M24CAQ Fiber Optic Breakout Cable, 400G Multimode OM4 Plenum, 24F MTP/MPO-PC to (x4) LC Duplex, Aqua, 5 m
- MPN: N846D05M24CAQ
- UPC: 037332258465
- PPN: TRP-N846D-05M-24CAQ
CAD
$731.05
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
400G Multimode 50/125 OM4 Plenum Fiber Optic Breakout Cable, 24F MTP/MPO-PC to (x4) LC Duplex (F/M), Aqua, 5 m
Documentation & Downloads
Specifications
Performance
- Network Compatibility
- 400 Gbps
- Attenuation @ 850NM
- 3.0 dB/km
- Storage Temperature Range
- -4° to 140°F (-20° to 60°C)
- Storage Humidity Range
- 35% to 65% RH, Non-Condensing
Transmission Distance100M @ 850NM Wavelength
Operating Temperature Range-4° to 140°F (-20° to 60°C)
Operating Humidity Range5% to 85% RH, Non-Condensing
Dimensions
- Side A - Connector 1
- 24F MPO (Female)
- Number of Fibers
- 16
- Minimum Bend Radius
- 20 mm (Dynamic); 10 mm (Static)
- Core Diameter
- 50
Side B - Connector 1(8) LC Duplex (Male)
Cable Length5M (16.4 ft)
Clad Diameter125
Primary Coating Diameter245
Material
- Technology
- Multimode
- Polarity
- Type B (cross)
- Connector Color
- Aqua; Black; Aqua
- Cable Jacket Rating
- OFNP
Endface PolishPC
Cable Jacket ColorAqua
Cable Jacket MaterialPVC
BreakoutYes
Compliance
- Product Warranty Period
- Lifetime limited warranty
