Tripp Lite N383S05M 400G Singlemode 9/125 OS2 Fiber Optic Cable, Duplex SN-UPC M/M, LSZH, Yellow, 5 m
- MPN: N383S05M
- UPC: 037332274458
- PPN: TRP-N383S-05M
CAD
$327.70
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

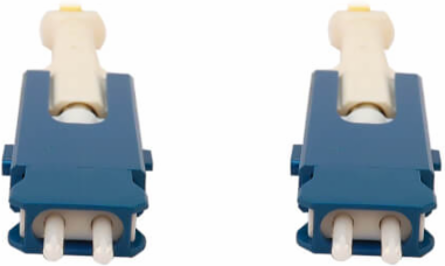

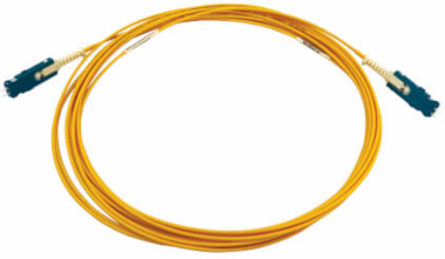

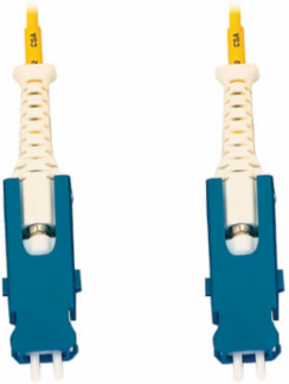

400G Singlemode 9/125 OS2 Fiber Optic Cable (Duplex SN-UPC M/M), LSZH, Yellow, 5 m (16.4 ft.)
Documentation & Downloads
Specifications
Dimensions
- Cable Length
- 5 m (16.4 ft)
- Cable Outer Diameter
- 1.60 mm
- Core Diameter
- 9.0
- Number of Fibers
- 2
- Side B - Connector 1
- SN DUPLEX (MALE)
Minimum Bend Radius20 mm (Dynamic); 10 mm (Static)
Clad Diameter125.0
Primary Coating Diameter245.0
Side A - Connector 1SN DUPLEX (MALE)
Optical PortSN
Performance
- Network Compatibility
- 400 Gbps
- Attenuation @ 1310NM
- 0.40 dB/km
- Operating Temperature Range
- 14° to 140°F (-10° to 60°C)
- Operating Humidity Range
- 5% to 85% RH, Non-Condensing
Wavelength1310nm; 1550nm
Attenuation @ 1550NM0.30 dB/km
Storage Temperature Range14° to 140°F (-10° to 60°C)
Storage Humidity Range5% to 85% RH, Non-Condensing
Reference
- Product Warranty Period
- Lifetime limited warranty
Material
- Technology
- Fiber; Singlemode
- Switchable Polarity
- Yes
- Connector Color
- Blue, White
- Cable Jacket Rating
- OFNR
Endface PolishUPC
Cable Jacket ColorYellow
Cable Jacket MaterialLSZH
