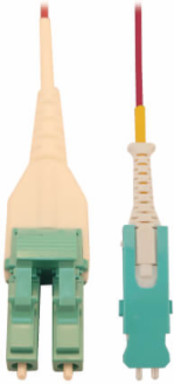

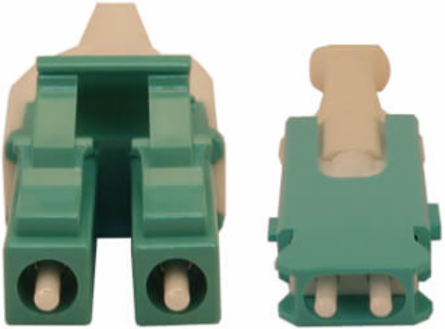

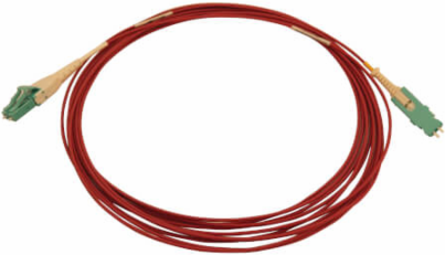

Tripp Lite N823L05MMG Fiber Optic Cable, Multimode 50/125 OM4, Duplex SN-PC to Duplex LC-PC, LSZH, Magenta, 5 m
- MPN: N823L05MMG
- UPC: 037332274656
- PPN: TRP-N823L-05M-MG
CAD
$240.02
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
40/100/400G Multimode 50/125 OM4 Fiber Optic Cable (Duplex SN-PC to Duplex LC-PC M/M), LSZH, Magenta, 5 m (16.4 ft.)
Documentation & Downloads
Specifications
Dimensions
- Cable Length
- 5 m (16.4 ft)
- Cable Outer Diameter
- 1.60 mm
- Core Diameter
- 50.0
- Minimum Bend Radius
- 20 mm (Dynamic); 10 mm (Static)
- Side B - Connector 1
- LC Duplex (Male)
Number of Fibers2
Clad Diameter125.0
Primary Coating Diameter245.0
Side A - Connector 1SN Duplex (Male)
Optical PortLC; SN
Material
- Technology
- Multimode
- Switchable Polarity
- Yes
- Connector Color
- Aqua; White
- Cable Jacket Rating
- OFNR
Endface PolishPC
Cable Jacket ColorMagenta
Cable Jacket MaterialLSZH
Performance
- Network Compatibility
- 1 Gbps (Gigabit); 10 Gbps; 25 Gbps; 40 Gbps; 100 Gbps; 400 Gbps
- Attenuation @ 850NM
- 3.5dB
- Operating Temperature Range
- 14° to 140°F (-10° to 60°C)
- Operating Humidity Range
- 5% to 85% RH, Non-Condensing
Wavelength1300nm; 850nm
Attenuation @ 1300NM1.5dB
Storage Temperature Range14° to 140°F (-10° to 60°C)
Storage Humidity Range5% to 85% RH, Non-Condensing
Compliance
- Product Warranty Period
- Lifetime limited warranty
