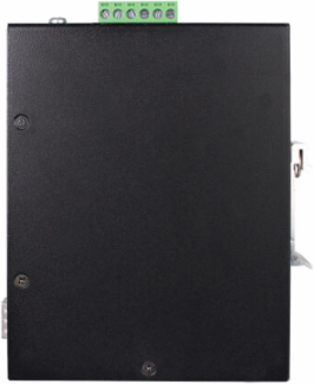

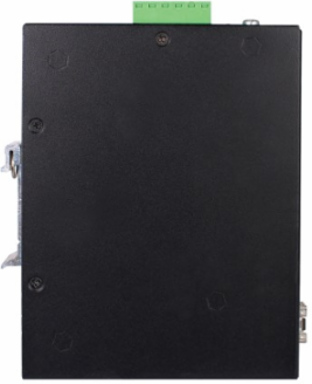

Tripp Lite NGIM05C1 Managed Industrial Gigabit Ethernet Switch, 5-Port, 1 SFP Slot, DIN Mount, -40 to 75°C
- MPN: NGIM05C1
- UPC: 037332266583
- PPN: TRP-NGI-M05-C1
CAD
$614.07
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
5-Port Managed Industrial Gigabit Ethernet Switch - 10/100/1000 Mbps, GbE SFP Slot, -40° to 75°C, DIN Mount, TAA
Features
- NGI-M05-C1 5-Port Managed Industrial Gigabit Switch
- DIN rail-mounting clip (pre-installed)
Documentation & Downloads
Specifications
Dimensions
- Number of Ports
- 5
- SFP Uplink Ports
- 1 (100Base-FX/1000Base-X)
- Form Factors Supported
- DIN-Rail Mountable
- Unit Weight
- 1.17 lb
- Console Port
- Yes
- LED Indicators
- PWR (Green): Power; ALM (Red): PWR & RPS fails; RPS (Green): Power by terminal block RPS; 1000 (Green): Ethernet speed 1000Mbps; LNK/ACT (Green): data transmitting/receiving; SFP (Green): speeds at 1000Mbps
Network Switch Ports(5) 10/100/1000 (RJ45); (1) Dedicated SFP

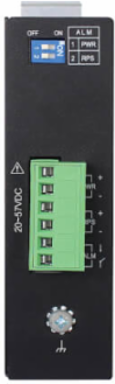

Power Source6-Pin Terminal Block
Unit Dimensions5.360 x 1.220 x 4.130 in
MAC Addresses8000
OSI LayerLayer 2
Performance
- Network Compatibility
- 1 Gbps (Gigabit), Auto-negotiable
- Voltage Compatibility
- 20-57 V
- Power Consumption
- 10.00 W
- Operating Temperature Range
- -40° to 167°F (-40° to 75°C)
- Relative Humidity
- 5 to 95% (non-condensing)
- ESD Protection
- ±8kV air discharge / ±4kV contact discharge
Switching Capacity12 Gbps (1 Gbps per port, Full Duplex)
Redundancy - Dual Power InputsNo
Maximum Input Amps Details0.35A
Storage Temperature Range-40° to 185°F (-40° to 85°C)
Operating Elevation0-6562 ft (0-2000 m)
Jumbo Frames10000
Material
- Primary Form Factor
- DIN-Rail
- Material of Construction
- Metal Housing
ColorBlack
FansFanless
Reference
- Product Type
- Managed Industrial Gigabit Ethernet Switch
Product Warranty Period3-year limited warranty
