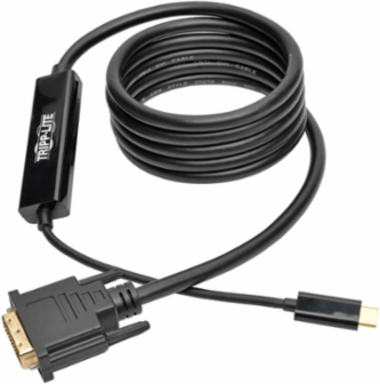

Tripp Lite U444-006-D USB-C to DVI Adapter Cable, 6 ft, Supports 1080p Video @ 60 Hz
- MPN: U444-006-D
- UPC: 037332202505
- PPN: TRP-U444-006-D
CAD
$61.07
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

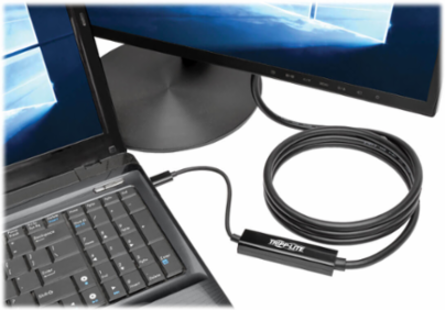

Connects your existing DVI monitor or projector to the USB-C or Thunderbolt 3 port on your tablet, laptop, notebook, smartphone or PC.
Features
- Supports USB DisplayPort Alternate Mode for transmitting video
- Supports HD video resolutions up to 1920 x 1080 (1080p) @ 60 Hz
- Supports USB 3.1 Gen 1 data transfer rates up to 5 Gbps
- Reversible USB-C plug connects in either direction
- Plug-and-play operation with no software or drivers required
- Note: This cable is uni-directional. Will only work from a USB-C port to VGA port
- 3-year limited warranty
Documentation & Downloads
Specifications
Features & Specifications
| Max Supported Video Resolution | DVI: 1920 X 1080 (1080P) @ 60HZ |
|---|---|
| USB Specification | USB 3.0 (up to 5 Gbps); USB 3.1 Gen 1 (up to 5 Gbps) |
| Technology | DVI; USB; USB 3.1 (Gen 1) |
| HDCP Specification | 1.3 |
|---|---|
| Driver Required | No |
Battery
| Battery Charging (1.2 Port) | No |
|---|
Certifications
| Certifications | Tested to CE, FCC, RoHS, REACH |
|---|
Connections

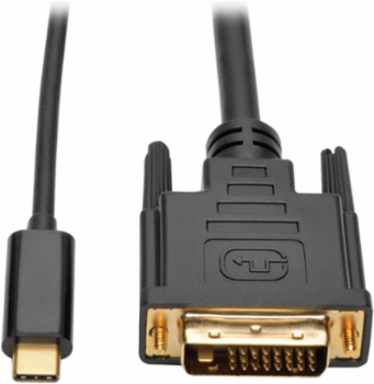

| Side A - Connector 1 | USB C (MALE) |
|---|---|
| Connector Plating | Gold |
| Side B - Connector 1 | DVI-D DUAL-LINK (MALE) (WIRED TO DVI-D SINGLE-LINK) |
|---|
Physical
| Cable Jacket Rating | VW-1 |
|---|---|
| Material of Construction | PVC and ABS |
| Shipping Weight (lbs.) | 0.24 |
| Unit Weight (lbs.) | 0.23 |
| Color | Black |
|---|---|
| Shipping Dimensions (hwd / in.) | 9.00 x 7.00 x 0.50 |
| Unit Packaging Type | Polybag |
Input
| Cable Length (ft.) | 6 |
|---|---|
| Product Length (in.) | 72 |
| Product Length (ft.) | 6 |
| Bus Powered | Yes |
|---|---|
| Product Length (cm.) | 182.88 |
| Product Length (m.) | 1.83 |
Environmental
| Operating Temperature Range | 32 to 113 F (0 to 45 C) |
|---|---|
| BTUs | 1.7 BTU/Hr |
| Operating Humidity Range | 10% to 85% RH, Non-Condensing |
| Storage Temperature Range | 14 to 158 F (-10 to 70 C) |
|---|---|
| Power Consumption (Watts) | 0.5 |
| Storage Humidity Range | 5% to 90% RH, Non-Condensing |
Overview
| UPC Code | 037332202505 |
|---|
Warranty
| Product Warranty Period (Worldwide) | 3-year limited warranty |
|---|
