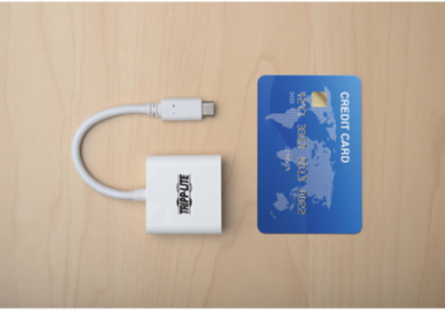

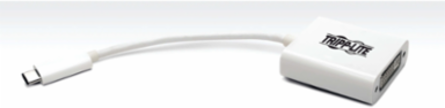

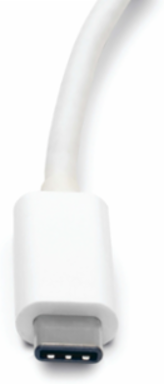

Tripp Lite U444-06N-DVI-AM USB-C to DVI Adapter, 1080p @ 60Hz, Plug-and-Play, 6 Inch
- MPN: U444-06N-DVI-AM
- UPC: 037332189332
- PPN: TRP-U444-06N-DVI-AM
CAD
$25.85
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

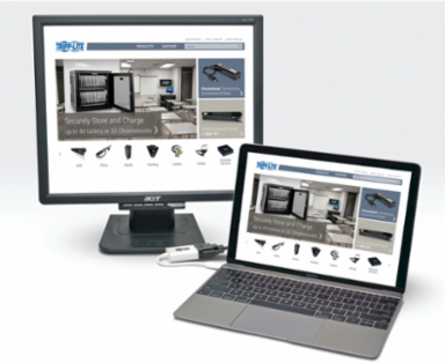

Connects your existing DVI TV, monitor or projector to the USB-C or Thunderbolt 3 port on your tablet, laptop, notebook, MacBook, Chromebook, smartphone or PC.
Features
- Supports USB DisplayPort Alternate Mode for transmitting video
- Supports HD video resolutions up to 1920 x 1080 (1080p) @ 60 Hz
- Supports USB 3.1 Gen 1 data transfer rates up to 5 Gbps
- Reversible USB-C plug connects in either direction
- Plug-and-play operation with no software or drivers required
- 3-year limited warranty
Documentation & Downloads
Specifications
Features & Specifications
- Max Supported Video Resolution
- DVI: 1920 X 1080 (1080P) @ 60HZ
- HDCP Specification
- 1.2
- Driver Required
- No
Displayport Specification1.2
USB SpecificationUSB 3.0 (up to 5 Gbps); USB 3.1 Gen 1 (up to 5 Gbps)
TechnologyUSB 3.1 (Gen 1); DVI; USB
Battery
- Battery Charging (1.2 Port)
- No
Certifications
- Certifications
- Tested to CE, FCC, RoHS, REACH
Connections
- Ports
- 1
- Side B - Connector 1

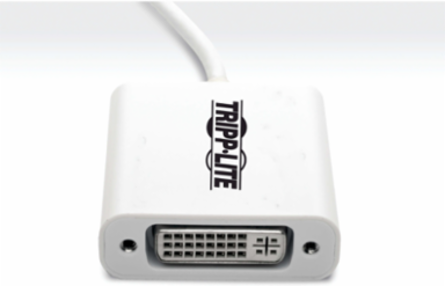

- DVI-D DUAL-LINK (FEMALE) (WIRED TO DVI-D SINGLE-LINK)
Side A - Connector 1USB C (MALE)
Connector PlatingNickel
Physical
- Cable Jacket Rating
- VW-1
- Material of Construction
- PVC and ABS
- Shipping Weight (lbs.)
- 0.10
- Unit Packaging Type
- Box
ColorWhite
Shipping Dimensions (hwd / in.)4.70 x 4.00 x 0.80
Unit Dimensions (hwd / in.)0.57 x 1.8 x 1.7
Unit Weight (lbs.)0.06
Input
- Bus Powered
- Yes
- Product Length (cm.)
- 15.24
- Product Length (m.)
- 0.15
Product Length (in.)6
Product Length (ft.)0.5
Environmental
- Operating Temperature Range
- 32 to 113 F (0 to 45 C)
- BTUs
- 2.7 BTU/Hr
- Operating Humidity Range
- 10% to 85% RH, Non-Condensing
Storage Temperature Range14 to 158 F (-10 to 70 C)
Power Consumption (Watts)0.8
Storage Humidity Range5% to 90% RH, Non-Condensing
Overview
- UPC Code
- 037332189332
Warranty
- Product Warranty Period (Worldwide)
- 3-year limited warranty
