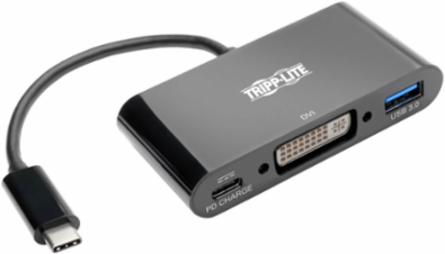

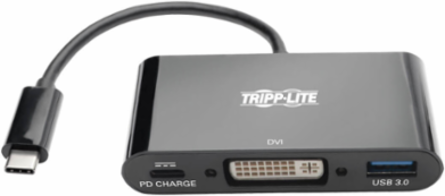

Tripp Lite U444-06N-DUB-C USB-C to DVI Adapter with USB-A Port, 1080p, PD Charging, Black
- MPN: U444-06N-DUB-C
- UPC: 037332209139
- PPN: TRP-U444-06N-DUB-C
CAD
$54.25
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

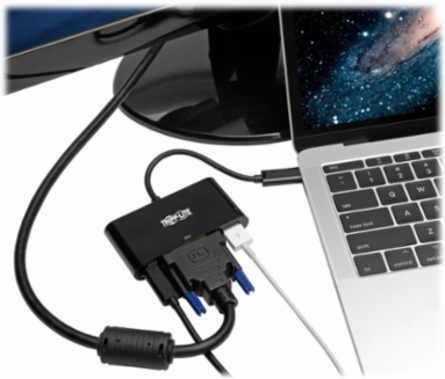

USB Type-C to DVI adapter adds DVI, USB-A and USB-C PD charging ports to your tablet, laptop, smartphone or PC.
Features
- Transmits video signals from sources supporting USB DisplayPort Alt Mode
- Delivers HD picture quality at resolutions up to 1920 x 1080 (1080p) @ 60 Hz
- BC 1.2-compliant USB-A port provides up to 1.5A of fast-charging power
- Powers and charges PD Charging-compliant devices, such as MacBooks and Chromebooks

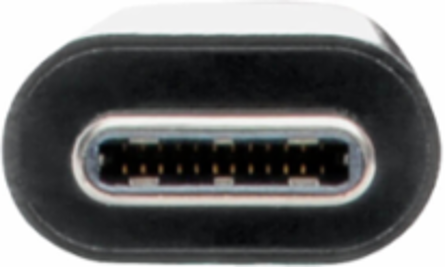

- Reversible USB-C plug connects in either direction for immediate no-fuss use
- Easy installation with plug-and-play operation—no software required
- 3-year limited warranty
- Mini Docking Station Turns Your Device’s USB-C or Thunderbolt 3 Port into a Multiport Workstation
- Supports USB DisplayPort Alternate Mode for Transmitting Video DisplayPort and USB Signals
- Transmits Crystal-Clear 1080p Video to a DVI Display
- Connects a USB Peripheral
- Charges a Connected Device
- Built-In USB-C Cable Connects in Either Direction
- Ready to Use Right Out of the Package
- 3-Year Warranty and Environmentally Responsible Design
Documentation & Downloads
Specifications
Features & Specifications
- Max Supported Video Resolution
- DVI: 1920 X 1080 (1080P) @ 60HZ
- USB Specification
- USB 3.0 (up to 5 Gbps); USB 3.1 Gen 1 (up to 5 Gbps)
- USB Power Delivery (PD) Charging Support
- Yes
- USB Power Delivery (PD) Charging Specification
- 2.0
HDCP Specification1.3
Driver RequiredNo
TechnologyUSB; USB 3.1 (Gen 1); DVI; PD Charging
Battery
- Battery Charging (1.2 Port)
- Yes
Certifications
- Certifications
- Tested to CE, FCC, RoHS, REACH
Connections
- Ports
- 3
- Side B - Connector 1
- DVI-I DUAL-LINK (FEMALE) (WIRED TO DVI-D SINGLE-LINK)
- Side B - Connector 3
- USB Type-C (FEMALE)
Side A - Connector 1USB C (MALE)
Side B - Connector 2USB 3.0 A (FEMALE)
Connector PlatingNickel
Physical
- Cable Jacket Rating
- VW-1
- Material of Construction
- PVC and ABS
- Shipping Weight (lbs.)
- 0.50
- Unit Packaging Type
- Box
ColorBlack
Shipping Dimensions (hwd / in.)0.90 x 3.90 x 5.60
Unit Dimensions (hwd / in.)0.57 x 3.1 x 1.6
Unit Weight (lbs.)0.08
Input
- Bus Powered
- Yes
- Product Length (cm.)
- 15.24
- Product Length (m.)
- 0.15
Product Length (in.)6
Product Length (ft.)0.5
Output
- Charging Ports / Amps
- 1.5A; 3A
Charging Watts60
Environmental
- Operating Temperature Range
- 32 to 113 F (0 to 45 C)
- BTUs
- 4.1 BTU/Hr
- Operating Humidity Range
- 10% to 85% RH, Non-Condensing
- Power Provided to Connected Device(s)
- 5V 0.9A (4.5W) Output (USB-A), Up to 20V 3A (60W) Input (USB-C)
Storage Temperature Range14 to 158 F (-10 to 70 C)
Power Consumption (Watts)1.2
Storage Humidity Range5% to 90% RH, Non-Condensing
Overview
- UPC Code
- 037332209139
Warranty
- Product Warranty Period (Worldwide)
- 3-year limited warranty
