Thomas & Betts K656LR-N0400 600 AMP CONNECTOR, TEST PT
- MPN: K656LR-N0400
- UPC: 783786978526
- PPN: T-B-K656LR-N0400
- UNSPSC: 39121421
CAD
$915.45
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

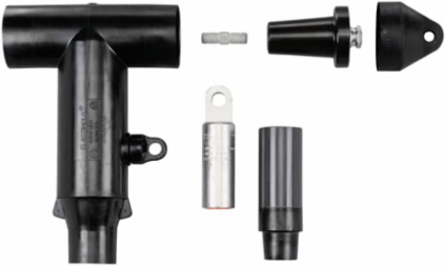

15/25kV 600 Amp Series Deadbreak Elbow with Test Point (with Insulated Plug, Cap, Stud, Lug and Cable Adapter), Aluminum Compression Lug. Cable Insulation Diameter 1.515 inch to 1.780 inch. Conductor Size Compressed/Stranded 900 or Compact/Solid 1000 or mm2 Compact 500.
Specifications
Ordering
- Country of Origin
- United States (US)
Selling Unit of Measureeach
Additional Information
- Application
- 15/25kV, 600 Amp Deadbreak Elbow Connection
- Color
- Black
- Effective Date
- 20100527
- Includes
- Elbow Connector Housing, Compression Lug, Stud, Insulated Plug with Cap, Lubricant, Cable Adapter, Installation Instructions, Crimp Chart, V.D. Cap-Peroxide.
- Material
- Housing - EPDM Rubber
- Product Type
- Deadbreak Elbow Connector with Test Point
- Special Functions
- Fully Shielded, Fully Submersible Molded Rubber Housing. 100 percent Peroxide-Cured Construction includes Insulation and Conductive EPDM Materials. Can be Easily Connected or Disconnected using Standard Hand Tools and Equipment in a De-Energized State. Non-Corrosive, Capacitive Test Point.
- Temperature Range
- -40 to +65 °C
Brand / LabelElastimold
Current Rating600 A
Environmental ConditionsFully Submersible
Insulation MaterialYes, EPDM Rubber
Product NameELECTRICAL CONNECTOR,>1000V
SizeWidth 10.36 inch, Length 13.00 inch from Body of T-Body to Center of Bushing.
StandardsANSI/IEEE Standard 386
Voltage Rating25 kV
Classifications
- WEEE Category
- Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)4586 >> Electrical connector assembly
