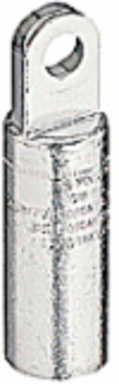

Thomas & Betts 03700270 Compression Lug
- MPN: 03700270
- UPC: 783786663682
- PPN: T-B-03700270
CAD
$98.60
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
15/25/35kV 600 Amp Series Deadbreak Compression Lug (Tin-Plated Aluminum). Conductor Size AWG Compressed/Stranded 4/0, or kcmil Compacted/Solid 250. Length 5.94 inches. Diameter 1.38 Inches. 1-Hole Pad, .50 inch Thick. Hole Size .688 inch Diameter.
Specifications
European Specifications (ETIM)
| ETIM | EC001053 Crimp cable lug for aluminium conductors |
|---|---|
| Number of fixing holes | 1 |
| Material | Aluminium |
|---|
North American Specifications (UNSPSC)
| UNSPSC | 39121405 Cable or wire lug |
|---|---|
| Brand Name | Elastimold |
| Special Features | Tin Plated Aluminum. Hole Size .688 inch. Connectors can used with both Copper and Aluminum Conductors. |
| Cable Size | Conductor Size kcmil Compressed or Stranded 500, or Compacted or Solid 600. |
| Amperage Rating | 600 Amps |
| Insulation | None |
| Color | Silver |
| Size | Length 5.94 inch, Diameter 1.38 inch, Hole .688 inch Diameter. |
| IGCC | 4532 Cable or wire lug |
|---|---|
| Type | Compression Lug |
| Application | Used with 15/25/35kV 600 Amp Deadbreak Elbow and Splice products. |
| Number Of Holes | 1 |
| Voltage Rating | 15/25/35kV |
| Material | Aluminum |
| Connection | Compression |
Packaging
| Outer Quantity | 1 |
|---|---|
| Weight Uom | 0.31 lbs. Each |
| Outer Dimensions (inches) | 19.25x15x8.25 |
|---|
