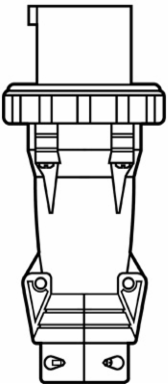

Pass & Seymour PS460P5W Watertight 60A 3ø 600V Pin & Sleeve Plug, 4.5 Inch Width, Gray
- MPN: PS460P5W
- UPC: 785007617078
- PPN: P-S-PS460P5W
CAD
$703.87
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Triple Pole, Four wire, Pin and Sleeve Plug. 6 amp, 600 volt.
Features
- Legrand Pin & Sleeve products provide installation ease, enduring performance in harsh conditions, and guaranteed IEC 309 compatibility.
- Arrives ready to wire, with cord grip open and cable-ready. Terminal screws come backed out and ready to wire. Front and back body require no disassembly prior to assembly.
- Nylon construction for highimpact and corrosion resistance.
- Nickel-plated brass pins provide extracorrosion resistance without sacrificing electrical conductivity.
- Locking ring with an integral neoprene gasket provides watertight seal when plug and connector/receptacle are mated.
- Natural-rubber grommets provide watertight protection at cable entry.
- Combination-head screws for added convenience and quick installation.
- Revolutionary, hinged cord grip for durable performance and ease of installation.
- Cover with integral neoprene gasket provides watertight seal.
Documentation & Downloads
Specifications
Key Specifications
- Height
- 4.5 in
- Length
- 10.0 in
- Color
- Gray
- Product Line
- Pass & Seymour
- Voltage
- 600.0 V
- Standard
- UL Listed
- Number of Poles
- 3-Way
Special FeaturesPin & Sleeve devices, Nylon construction for high impact, combination head screws, rating compliance visible
Width4.5 in
Country of OriginUnited States
Amperage60.0 A
Wire Size2 AWG
Number of Wires4.0
Application SectorCommercial
