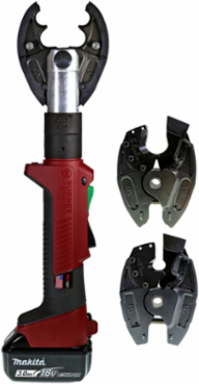

Burndy PATMD34603A1 6-Ton IN-LINE® Crimper and Cutter, 19.25 Inch x 4.375 Inch x 2.75 Inch, 3Ah Li-Ion
Burndy PATMD34603A1 6-Ton IN-LINE® Crimper and Cutter, 19.25 Inch x 4.375 Inch x 2.75 Inch, 3Ah Li-Ion
- MPN: PATMD34603A1
- UPC: 621945546622
- PPN: BUR-PATMD34603A1
- UNSPSC: 27112750
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
Description
PATMD-LW IN-LINE® 6T Scissor Action, O/D3 Crimp Jaw, ACSR & GUY Cut Jaws, 3Ah Li-ion, AC, Utility Bag.
Features
- Interchangeable scissor action crimping and cutting jaws available
- 355° Head rotation
- Uses W and X dies
- Safety trigger lock and locking jaw tabs
- LED Worklight
- Accepts 2.0Ah-6.0Ah 18V lithium-ion Makita batteries
Specifications
Specifications
- Application - For Use On
- Interchangeable Jaws: Crimp: ACSR, Aluminum, Copper Code/Flex; Cut: ACSR (26/7), Aluminum (AAC), Copper (Soft Drawn), EHS Guy Wire (sold separately)
- ChannelSightWidgetId
- 705
- Country of Origin
- US
- Description - Slang
- PATMDLW, IN-LINE, scissor action, 6-ton
- Dimensions
- 19.25 in x 4.375 in x 2.75 in
- Length
- 19.25 in
- Power Source
- 120V-AC Charger
- Trade Name
- PATRIOT® IN-LINE®
- Battery
- 3.0Ah 18V Li-Ion (Accepts 2.0Ah-6.0Ah Makita LI Batteries)
- Type
- Crimper and Cutter
- Weight
- 5.55 lb.
- Battery Type
- 3.0Ah 18V Li-Ion (Accepts 2.0Ah-6.0Ah Makita LI Batteries)
- Freight Class Code
- 16027000
- Image Actual Or Representative
- A
- Recharge Time
- 0.5 hr
- Series
- PATRIOT® IN-LINE® Series
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 0.000 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 1
- Pallet Height
- 44.075 in
- Pallet Weight
- 45.000 lb.
Buy American CompliantNo
Container TypeVinyl Utility Bag
Crimp Force Capacity6 ton
Die TypeW Die and X Die
Height2.75 in
Operating Voltage18 VDC
Product Type6-Ton IN-LINE®
ApplicationCrimping and Cutting
Size19.25 in x 4.375 in x 2.75 in
Warranty5 year limited warranty (excluding blades), Lifetime warranty on INFINITY DRIVE®, 3 year warranty on batteries and charger
Width4.375 in
Class CodeB82
Harmonization Code8467290090
Sub Class CodeB82B82B
Crimping RangesWith Appropriate Jaw: Crimping Capacity: Copper: #10 sol.-500 kcmil, Copper Flex: #8 AWG-350 kcmil, Aluminum: #14 sol.-350 kcmil, ACSR: #14 sol.-4/0 AWG; Cutting Capacity: ACSR (26/7) up to 556.5 kcmil, Aluminum (AAC) up to 636 kcmil, Copper (Soft Drawn) up to 600 kcmil, EHS Guy Wire up to 3/8"
Tool TypeBattery Actuated Scissor Action
BOX SIZE7.665x24.313x10.333 (in)
Carton - Number of Sub Packs1
Carton - SCC-14 Next Lower Level Sub Pack00621945546622
Pallet - GTIN - Package70621945546621
Pallet Length48.000 in
Pallet Width40.000 in
