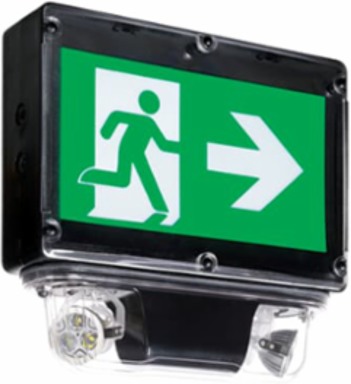

Thomas & Betts ENC1W6L36LA-2 6V 36W LED Pictogram Combination Unit, NEMA-4X, PVC, 4-5/8 Inch Width
- MPN: ENC1W6L36LA-2
- UPC: 782683430595
- PPN: T-B-ENC1W6L36LA-2
- UNSPSC: 39111707
CAD
$1800.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
NEMA-4X and NSF certified pictogram combination unit single face factory white housing 6V-36W Nickel-Cadmium MR16 LED 6V-4W 120/277VAC input
Specifications
Installation
- Instructions and Manuals
- ENC1W6L36LA-2
Dimensions
- Product Net Width
- 4-5/8 in
- Product Net Depth / Length
- 13-1/4 in
Product Net Height12-5/8 in
Product Net Weight13.999545 lb6.349 kg
Technical
- Standards
- CSA 22.2
- Voltage Rating
- 6 V
- Number of Lamps
- 2
- Mounting Type
- Wall or ceiling
- Material
- PVC
- Battery Chemical Composition
- Lead-Calcium
- Number of Batteries
- 1
Special FunctionsComes standard with two pictogram films per face, for direction selection
Power Watt4 W
Lamp TypeLED
Product TypePictograms
Housing ColorFactory White
Battery Weight3 lb
Classifications
- WEEE Category
- Product Not in WEEE Scope
- IDEA Granular Category Code (IGCC)
- 3938 >> Combo light unit exit
eClassV11.0 : 27110305
Environmental
- RoHS Status
- No declaration needed
REACH DeclarationNo declaration needed
Ordering
- Minimum Order Quantity
- 1 piece
- Package Level 1 Gross Weight
- 14 lb
Package Level 1 Unitsbox 1 piece
