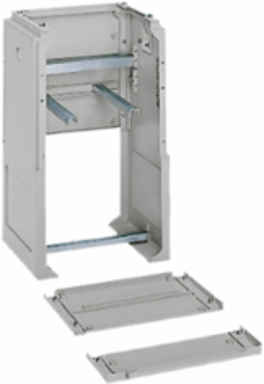

Schneider Electric NSYZHPLA103G 900mm Polyester Plinth for Thalassa Enclosures with Multi-Purpose Use

MPN: NSYZHPLA103G
PPN: SCH-NSYZHPLA103G
UNSPSC: 39121324

$983.71

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

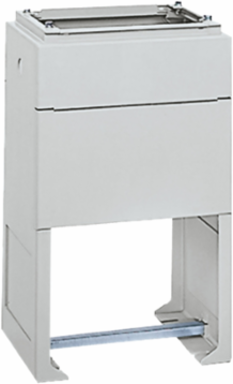

900mm polyester plinth partly buried for Thalassa PLAZ/PLAZT. W is1000 x D is320mm. Multi-purpose enclosure accessory. Fixing mode is screwed on bottom of enclosure or by fixing element on floor location. Grey RAL 7035 for plinth. Fixing elements and 1 plinth incl.

Features

Front panel with a height of 170 mm, retractable, providing easy access to the inside.
Fixed front panel with a height of 305 mm, corresponding to the finished floor height area.
The height above the floor after built-in varies between 200 and 500 mm.
A metal rail helps to fix the entry cables.
Lateral uprights with knock-out auxiliary output with Ø Pg 36 (48 mm).
A knock-out area is provided at the bottom of the lateral uprights for cable entry, if necessary.
Material: Polyester reinforced with fiberglass
Color: RAL 7035 grey

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Spain
Depth	1035 mm

Height	35.43 in

Physical Attributes

Color	plinth Gray RAL 7035)

Important Information Attributes

Persona Type Ids	LC, OM, OM8, PB, SI
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Enclosure Nominal Dimensions	-, -
Local Publishable Date	2026-04-13
Weee Scope	Out
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1916
China Rohs In Scope	Yes
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Device Application	multi-purpose
Energy Efficiency Optimized	False
Product Availability	Non-Stock - Not normally stocked in distribution facility
Range	PanelSeT
Sustainable Packaging	No
Height Useful	900 mm
Nbr. Of Units In Pkg.	1
Silicone Free	Yes

Persona Type Names	Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market Segmentation	Commercial, Industrial
Local Data Status	Publishable
Return Indicator	N
Scope Perimeter	At least in Europe
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	7
Without Single Use Plastic	No
Tier Id	2
Function Option Id	STANDARD
Product Kit Identifier	N
Device Composition	fixing elements1 plinth
Fixing Mode	screwed - bottom of enclosureby fixing element - on floor
Product Or Component Type	plinth
Returnability	No
Height Nominal	900 mm
Accessory / Separate Part Category	enclosure accessory
Customs Code	3926909989
Warranty In Months	18

Environment Attributes Main

Take Back	No
China Rohs Regulation	X
Silicon Free	Yes
Eu Rohs Directive	Compliant By Exemption
Packaging Without Single Use Plastic	No
Pep Code	ENVPEP1109021EN

Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Environmental Disclosure	ENVPEP1109021EN
Packaging Made With Recycled Cardboard	No
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
