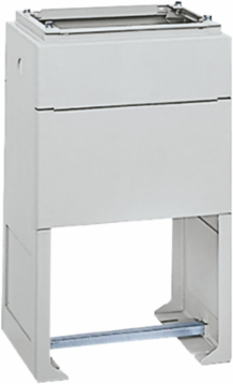

Schneider Electric NSYZHPLA53G 900mm Polyester Plinth Gray RAL 7035 for Thalassa Enclosures
Schneider Electric NSYZHPLA53G 900mm Polyester Plinth Gray RAL 7035 for Thalassa Enclosures
- MPN: NSYZHPLA53G
- PPN: SCH-NSYZHPLA53G
- UNSPSC: 39121324
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$737.78/ EA
Description
This 900mm polyester plinth is designed for versatility and durability, perfectly complementing the Thalassa range of enclosures. With a sleek gray finish (RAL 7035), it not only enhances the aesthetic appeal of your installation but also ensures robust support for various applications. Crafted in Spain, this plinth features a secure fixing mode that allows for easy installation, whether screwed to the bottom of the enclosure or directly onto the floor. Its multi-purpose design makes it an essential accessory for any enclosure setup, providing both stability and functionality in diverse environments.
Features

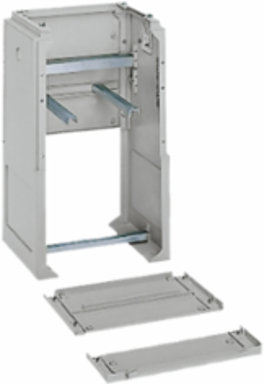

- Front panel with a height of 170 mm, retractable, providing easy access to the inside.
- Fixed front panel with a height of 305 mm, corresponding to the finished floor height area.
- The height above the floor after built-in varies between 200 and 500 mm.
- A metal rail helps to fix the entry cables.
- Lateral uprights with knock-out auxiliary output with Ø Pg 36 (48 mm).
- A knock-out area is provided at the bottom of the lateral uprights for cable entry, if necessary.
- Material: Polyester reinforced with fiberglass
- Color: RAL 7035 grey
Specifications
Physical Attributes
- Color
- plinth Gray RAL 7035)
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition
- fixing elements, 1 plinth
- Fixing Mode
- screwed - bottom of enclosure, by fixing element - on floor
- Local Publishable Date
- 2025-09-16
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- ROHS EUR Status
- Compliant with Exemptions
- ROHS EUR Full Compliance Status Id
- PRO_ACTIVE_COMPLIANCE
- Green Premium Status For Reporting
- Green Premium product
- Without Single Use Plastic
- No
- Return Indicator
- N
- Function Option
- Standard
- Energy Efficiency Optimized
- False
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Range
- PanelSeT
- Sustainable Packaging
- No
- Medium Desc
- 900mm polyester plinth - partly burried - for vers.PLAZ or PLAZT W500xD320mm
- Product Kit Identifier
- N
- Global Commercial Status
- Commercialised
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Enclosure Nominal Dimensions-, -
Local Data StatusPublishable
Legacy WEEE ScopeOut
EOLI Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
ROHS EUR In ScopeNo
ROHS EUR Full Compliance StatusPro-active compliance (Product out of EU RoHS legal scope)
China ROHS In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Function Option IdSTANDARD
Device Applicationmulti-purpose
Package Weight Lbs15.600 kg
Product Or Component Typeplinth
ReturnabilityNo
Accessory Separate Part Category2enclosure accessory
Stocking FlagY
Pep CodeENVPEP1109021EN
Environment Attributes Main
- Take Back
- No, Nej
- ROHS Exemption Information
- Yes
- China ROHS Regulation
- X
- Environmental Disclosure
- ENVPEP1109021EN
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP1109021EN
EU ROHS DirectiveCompliant By Exemption , Pro-active compliance (Product out of EU RoHS legal scope)
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- plinth
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Depth
- 535 mm
