Schneider Electric NSYZZ2124G Polyester glassreinf. plinth for encl PLAZ(T)124 front opening IP44-IK10 RAL7035
Schneider Electric NSYZZ2124G Polyester glassreinf. plinth for encl PLAZ(T)124 front opening IP44-IK10 RAL7035
- MPN: NSYZZ2124G
- PPN: SCH-NSYZZ2124G
- UNSPSC: 43223306
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$614.82/ EA
Description

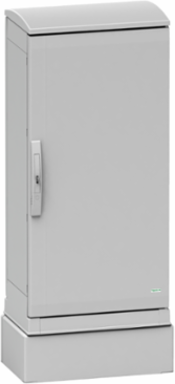

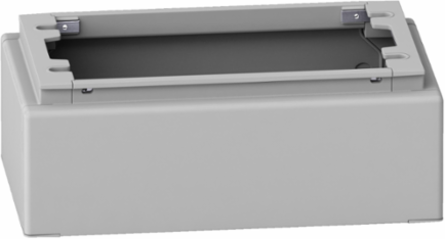

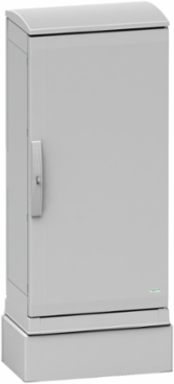

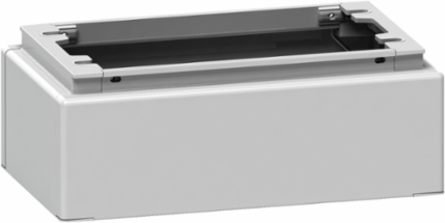

Plinth to be used with PanelSeT PLA and PanelSeT PHD enclosures. The plinth is to be used in multi-purpose applications. The width is 1285mm. The height is 200mm. The depth is 410mm. The kit is made of fixing elements, 2 front panels and 2 side parts. The product is made of grey Material : Plastic. (RAL 7035). (RAL 7035). Mechanical protection rating is IK10.
Features
- The front and back plates can only be removed from the inside.
- Height: 200 mm.

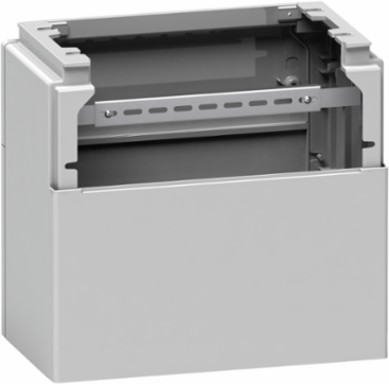

- It is provided with one or two reinforcement cross-rails, adjustable to adapt to the position of the cables.
- Material: Glass-reinforced polyester
- Color: RAL 7035 grey
Specifications
Physical Attributes
- Color
- plinth Gray RAL 7035)
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition
- fixing elements, 2 front panel, 2 side part
- Local Data Status
- Publishable
- Legacy WEEE Scope
- Out
- EOLI Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- ROHS EUR In Scope
- No
- ROHS EUR Full Compliance Status
- Pro-active compliance (Product out of EU RoHS legal scope)
- China ROHS In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Function Option Id
- STANDARD
- Device Application
- multi-purpose
- Fixing Mode
- by screws - on side parts
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Range
- PanelSeT
- Sustainable Packaging
- No
- Medium Desc
- Polyester glassreinf. plinth for encl PLAZ(T)124 front opening IP44-IK10 RAL7035
- Product Kit Identifier
- N
- Global Commercial Status
- Commercialised
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Enclosure Nominal Dimensions- D: 420 mm, - D: 420 mm, - D: 420 mm, - D: 420 mm
Local Publishable Date2025-09-16
Scope PerimeterAt least in Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
ROHS EUR StatusCompliant with Exemptions
ROHS EUR Full Compliance Status IdPRO_ACTIVE_COMPLIANCE
Green Premium Status For ReportingGreen Premium product
Without Single Use PlasticNo
Return IndicatorN
Function OptionStandard
Energy Efficiency OptimizedFalse
Package Weight Lbs9.644 kg
Product Or Component Typeplinth
ReturnabilityNo
Accessory Separate Part Category2enclosure accessory
Stocking FlagY
Pep CodeENVPEP1109021EN
Environment Attributes Main
- Take Back
- No, Nej
- ROHS Exemption Information
- Yes
- China ROHS Regulation
- X
- Environmental Disclosure
- ENVPEP1109021EN
- Packaging Made With Recycled Cardboard
- No
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
EU ROHS DirectiveCompliant By Exemption , Pro-active compliance (Product out of EU RoHS legal scope)
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
IP Degree Of ProtectionIP44
Packaging Without Single Use PlasticNo
Pep CodeENVPEP1109021EN
General Attributes
- Product Or Component Type
- plinth
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Depth
- 410 mm
