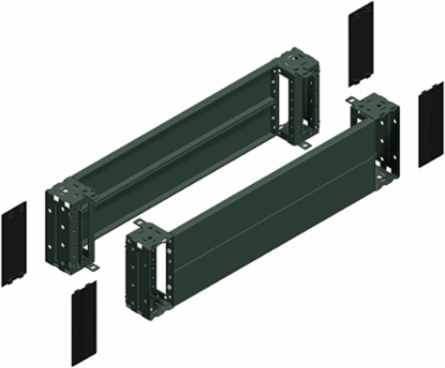

Schneider Electric NSYSPF8200 Plinth Front for Enclosure, 800mm Width, 200mm Height, IP30, IK10
- MPN: NSYSPF8200
- PPN: SCH-NSYSPF8200
CAD
$151.60
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Front plinth for Spacial SF, SM. 200 x 800 mm. Multi-purpose enclosure accessory. Electronic and comparmentalised application. Plinth side panels mounting support. Permanent permissible load 1300kg. Fixing mode by fixing element. Epoxy-polyester powder surface finish. Grey RAL 7022. IP30 complete plinth, IK10.
Documentation & Downloads
Specifications
Key Specifications
- Range Compatibility
- Spacial Spacial SF || Spacial Spacial SM || Spacial Spacial SD || Spacial Spacial S3D || Spacial Spacial CRN
- Product Or Component Type
- plinth front
- Device Composition
- fixing elements || 4 corner cover || 4 corner || 2 front panel || 2 rear panel
- Device Application
- multi-purpose || electronic application || compartmentalised application
Accessory / Separate Part Categoryenclosure accessory
RangeSpacial
Mounting Supportplinth side panels
Complementary
- Fixing Mode
- by fixing element - on structure
- Width
- nominal 800 mm
- Colour
- grey RAL 7022)
Surface Finishepoxy-polyester powder
Height200 mm
Permanent Permissible Load1300 kg
Environment
- Ik Degree Of Protection
- IK10
Ip Degree Of ProtectionIP30 complete plinth)
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP110923EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Circularity Profile
- N/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
China Rohs RegulationProduct out of China RoHS scope. Substance declaration for your information
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
